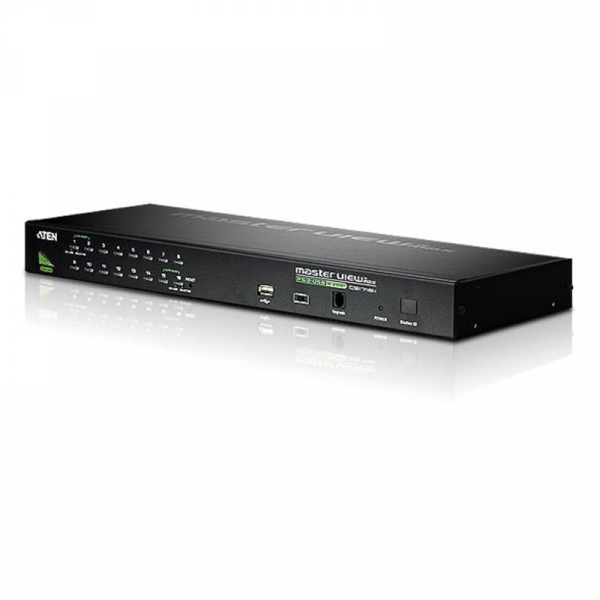

ATEN 16 Port Rackmount Usb-ps/2 Vga Kvmp Switch CS1716A-AT-U

Sku: CS1716A-AT-U

Availability: Out of Stock

Brand: ATEN

Category: KVM Switch

$918.50

The CS1716A KVM switch allows users to control up to 16 computers from a single PS/2 or USB console (keyboard, mouse, and monitor). By daisy-chaining up to 31 additional switches, it can manage up to 512 computers. It includes a front-panel USB port for accessing peripherals, supports both USB and PS/2 interfaces, and provides advanced features like Video DynaSync™, auto PS/2 and USB interface detection, and two-level password security.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: Aten | Model: CS1716A-AT-U



The CS1716A KVM switch is a control unit that allows access to multiple computers from a single PS/2 or USB console (keyboard, mouse, and monitor). A single CS1716A can control up to 16 computers. As many as 31 additional switches can be daisy-chained to each other, so that up to 512 computers can all be controlled from a single keyboard-monitor-mouse console. Additionally, a front panel USB port is available for each computer to access any peripherals connected to it on a one-at-a-time basis.



Package Contents

  • 1x KVM Switch with Standard Rack Mounting Kit
  • 1x Custom KVM Cable (VGA, USB; 1.8m/6ft)
  • 1x Custom KVM Cable (VGA, PS/2; 1.8m/6ft)
  • 1x Custom Console Cable (VGA, USB, PS/2; 27cm/0.88ft)
  • 1x Firmware Upgrade Cable
  • 1x Foot Pad Set(4 PCS)
  • 1x Power Adapter
  • 1x User Instructions



  • One USB-PS/2 console controls up to 16 computers
  • Daisy-chain up to 31 additional units - control up to 512 computers from a single console
  • Front accessible USB port allows each computer to access USB peripherals*
  • Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
  • Multiplatform support - Windows, Linux, Mac and Sun
  • Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
  • Supports USB keyboards for PC, Mac and Sun
  • Auto PS/2 and USB interface detection
  • USB / PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
  • Superior video quality - up to 2048 x 1536; DDC2B
  • No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
  • Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position
  • Port names automatically reconfigured when station sequence is changed
  • Two level password security; only authorized users view and control computers; up to four users and an administrator with separate profiles for each
  • Auto Scan feature for monitoring user-selected computers
  • Broadcast Mode - operation simultaneously performed on all selected computers... etc
  • Hot pluggable - add or remove computers without having to power down the switch
  • Buzzer on/off via hotkey and OSD
  • Firmware upgrades to all the chained KVM switch at the same time via the daisy-chain cable
  • Rack mountable in 19" system rack (1U)

    * The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.

Computer Connections
Direct 16
Maximum 512 (via Daisy-chain)
Port Selection OSD, Hotkey, Pushbutton
Connectors
Console Ports 1 x SPHD-18 Male (Yellow)
KVM Ports 16 x SPHD-15/17 Female (Yellow)
Daisy Chain Ports 1 x DB-25 Female (Black)
1 x DB-25 Male (Black)
Firmware Upgrade 1 x RJ-11 Female (Black)
USB Port 1 x USB Type A Female
Power 1 x DC Jack Female (Black)
LEDs
Online 16 (Orange)
Selected 16 (Green)
Station ID 1 x 2-digit, 7-segment (Orange)
Power 1 (Dark Green)
Switches
Port Selection 16 x Pushbutton
Firmware Upgrade Recovery 1 x Slide
Emulation
Keyboard / Mouse PS/2, USB
Video 2048 x 1536; DDC2B
Scan Interval 1 – 255 Seconds (Default: 5 secs)
Power Consumption DC5.3V:5.31W:40BTU/h

Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0-50?C
Storage Temperature -20-60?C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 2.85 kg ( 6.28 lb )
Dimensions (L x W x H) 43.72 x 15.99 x 4.40 cm
(17.21 x 6.3 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
