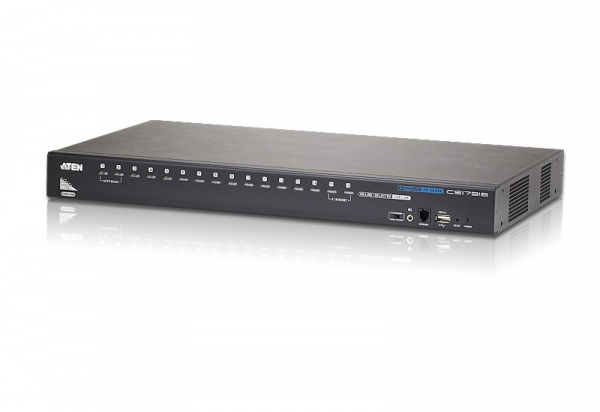

ATEN 16-port Rackmount Hdmi Kvm Switch With CS17916-AT-U

Sku: CS17916-AT-U

Brand: ATEN

Category: KVM Switch

$1,292.50

Shipping Information

Availability: On Order

On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.

Shipping Calculator

The ATEN CS17916 16-Port USB HDMI KVM Switch allows centralized control of up to 16 HDMI computers from a single USB console, expandable up to 256 computers through cascading. Ideal for multi-display environments, it supports stacking up to 8 units for a seamless video experience. With HD video resolution, audio support, and multilingual on-screen display (OSD), the CS17916 enhances productivity in data-heavy applications. It features independent KVM and USB switching, Video DynaSync™ technology, and provides a rich multimedia experience, including HD audio.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: Aten | Model: CS17916-AT-U



The CS17916 16-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 16 HDMI computers from a single USB keyboard, USB mouse, and monitor console. The CS17916 can be cascaded up to two levels – up to 256 computers – all from a single console.

In addition, the CS17916 features multi-display functionality, which enables the use of standard USB cables to stack up to 8 switches in a multi-display installation where each computer is fitted with multiple video cards. It allows users to contrast, analyze and monitor video output in convenient ways, substantially simplifying the working environment.

The CS17916 supporting ATEN’s on-screen display (OSD) function, allowing it to access any computer connected to the installation, which offers OSD configuration backup / restore functions to save or back up the OSD settings and restore them as needed. The CS17916 provides multimedia keyboard support and is audio enabled. Users can listen to the audio output of each computer on two sets of speakers (on a one at- a-time basis).



Package Contents

  • 1x 16-Port USB HDMI KVM Switch with Rack Mounting Kit
  • 2x KVM Cable (HDMI, USB, Audio; 1.8m/6ft)
  • 1x Firmware Upgrade Cable
  • 1x Power Adapter
  • 1x Foot Pad Set (4 pcs)
  • 1x User Instructions



  • One USB console controls up to sixteen HDMI interface computers and two additional USB 2.0 devices
  • HDMI compatible
  • Cascadable to two levels–control up to 256 computers1
  • Multi-Display feature – stack up to eight CS17916 units and display video from up to eight monitors(dual display/triple display/quad display/multi-display)
  • 2-port USB 2.0 hub built in2
  • Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
  • Independent switching of KVM and USB focus
  • OSD Backup/Restore feature–enables the administrator to back up the switch’s configuration and user profile information
  • Firmware upgradable
  • Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
  • Superior video quality–supports up to 1080p / 1920 x 1200@60Hz3
  • Supports widescreen resolutions
  • Audio enabled–full bass response provides a rich experience for 2.1 channel surround sound systems
  • Console audio ports on front panel for easy access
  • Auto Scan Mode for monitoring all computers
  • HDCP compatible
  • Multiplatform support–Windows, Linux, Mac, Sun4
  • Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
  • Complete keyboard emulation for error-free booting
  • Mac/Sun keyboard support and emulation5
  • Multilingual OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian, and French
  • Multilingual keyboard mapping – supports English (US), English (UK), German (GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Simplified Chinese
  • Supports hot-plugging

    Note:
    1. CS17916 cascade to CS17916 only.
    2. The USB 2.0 hub cannot be accessed through the switch by computers on the second or third level of a cascaded installation.
    3. CS17916 supports the resolution up to 1920 x 1080 @ 60 Hz. The resolution of the connected source should be 1920 x 1080 @ 60 Hz or lower in order to avoid compatibility issues.
    4. For PC compatible computers. Mac and Sun computers must be compatible with USB connections.
    5. PC keyboard combinations emulate Mac / Sun keyboards; Mac / Sun keyboards work only with their own computers.

Computer Connections
Direct 16
Maximum 256 (via Cascade)
Port Selection OSD, Hotkey, Pushbutton
Connectors
Console Ports 1 x HDMI Female
2 x USB Type A Female
2 x 3.5mm Audio Jack Female (Green; 1 x front panel, 1 x rear panel)
KVM Ports 16 x HDMI Female
16 x USB Type B Female
16 x 3.5mm Audio Jack Female (Green)
Firmware Upgrade 1 x RJ11 Female
Power 1 x DC Jack
USB Hub 2 x USB Type A Female (1 x front panel, 1 x rear panel)
Switches
Port Selection 16 x Pushbutton
Reset 1 x Semi-recessed Pushbutton
Firmware Upgrade 1 x Slide Switch
LEDs
USB Link 16 (Green)
Power 1 (Dark Green)
On Line /Selected 16 (Orange)
Emulation
Keyboard / Mouse USB
Video 1920 x 1080 @ 60Hz; 1920 x 1200 @ 60Hz
Scan Interval 1 – 255 seconds (default: 5 sec.)
Power Consumption DC5V:9.18W:69BTU/h

Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0 – 50°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 3.86 kg ( 8.5 lb )
Dimensions (L x W x H) 43.24 x 25.72 x 4.40 cm
(17.02 x 10.13 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
