ATEN 16 Port Dual Rail Cat5 19 Lcd Kvm Over KL1116VN-AXA-AU ATEN 16 Port Dual Rail Cat5 19 Lcd Kvm Over KL1116VN-AXA-AU

ATEN 16 Port Dual Rail Cat5 19 Lcd Kvm Over KL1116VN-AXA-AU

SKU : KL1116VN-AXA-AU
Brand : ATEN
Availablity : on order
On Order items usually have to be ordered in and may take bit longer to get them delivered
Maximum: 256 (via Cascade), 1 x HDB-15 Female (Blue), External Mouse Port: 1 x USB Type-A Female, KVM Ports: 16 x RJ-45 Female, Power: 1 x IEC 60320/C14, Port Selection: 16 x Pushbutton, Resolution: 1280 x 1024 @75Hz, Housing: Metal.   ATEN's KL1116VN 16-port Cat 5 Dual Rail LCD KVM over IP Switch features an independently retractable, dual slide 19" LED-backlit LCD monitor and keyboard with built-in touchpad.
Ask a question about this product
$6,434.00
Buy Now

Estimated Shipping

Delivery when available

Find

Pay what you see.

No surcharge On Credit Card, AMEX or Paypal. American express, master card, nab, Paypal, visa

Share

  • Description
  • Specifications
  • Reviews

Product Description

Manufacture # Aten | Model # KL1116VN-AXA-AU

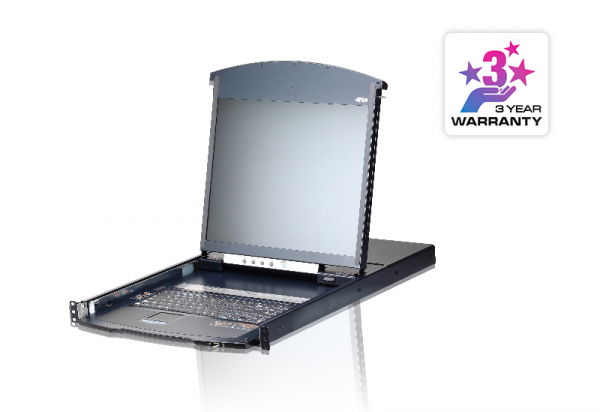

ATEN's KL1116VN 16-port Cat 5 Dual Rail LCD KVM over IP Switch features an independently retractable, dual slide 19" LED-backlit LCD monitor and keyboard with built-in touchpad.



The KL1116VN switches allow local console and remote over IP access for operators to monitor and manage their entire data center locally at the switch, and over a network using a web-based browser. In addition, they offer out-of-band access with external modem support for BIOS-level troubleshooting when the network is down.



Features:

  • One bus for local and one bus for remote KVM over IP access
  • Virtual media enables file applications, OS patching, software installation and diagnostic testing
  • High Video Resolutions up to 1920 x 1200 @ 60 Hz with 24-bit color depth at the switch’s external local console and on remote displays; up to 1280 x 1024 @ 75 Hz at the switch’s built-in LCD screen
  • Exclusive LED illumination light designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight conditions.



Overview:

  • External Mouse Port: 1 x USB Type-A Female
  • KVM Ports: 16 x RJ-45 Female
  • Serial: 2 x RJ-45 Female
  • PON: 1 x RJ-45 Female
  • Modem: 1 x RJ-45 Female
  • LAN Ports: 2 x RJ-45 Female



Manufacturer Warranty: 02 Years Limited Warranty

Technical Specifications

Local 1
Remote 1
Direct 16
Maximum 256 (via Cascade)
Port Selection OSD, Hotkeys, Pushbuttons
Console Ports 2 x USB Type-A Female (White)
1 x DVI-D Female (White)
1 x HDB-15 Female (Blue)
External Mouse Port 1 x USB Type-A Female
KVM Ports 16 x RJ-45 Female
Serial 2 x RJ-45 Female
PON 1 x RJ-45 Female
Modem 1 x RJ-45 Female
LAN Ports 2 x RJ-45 Female
Power 1 x IEC 60320/C14
Port Selection 16 x Pushbutton
Reset 1 x Semi-recessed Pushbutton
Power 1 x Rocker
LCD Power 1 x Pushbutton
LCD Adjustment 4 x Pushbutton
Online 16 (Green)
Selected 16 (Orange)
10/100/1000 Mbps 2 (Orange / Orange & Green / Green)
Power 1 (Blue)
LCD Power 1 (Orange)
Lock 1 x Num Lock(Green)
1 x Caps Lock(Green)
1 x Scroll Lock(Green)
Remote 1920 x [email protected]
LCD Module 19"
Resolution 1280 x 1024 @75Hz
Pixel Pitch 0.294 mm x 0.294 mm
Response time 5 ms
Viewing Angle 170° (H), 160° (V)
Contrast Ratio 1000:1
Support Color 16.7M colors
Luminance 250 cd/m²
Keyboard / Mouse PS/2; USB
Scan Interval 1-255 Sec.
Maximum Input Power Rating 100-240V AC; 50-60Hz; 1A
Power Consumption AC110V:32.1W:157BTU
AC220V:32.4W:158BTU
Operating Temperature 0 - 40°C
Storage Temperature -20 - 60°C
Humidity 0–80% RH, Non-condensing
Housing Metal
Weight 15.28 kg ( 33.66 lb )
Dimensions (L x W x H) 48.00 x 70.12 x 4.40 cm
(18.9 x 27.61 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
