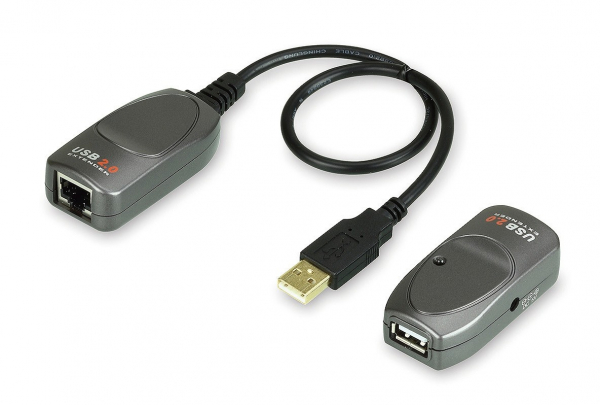

ATEN 1 Port Usb 2.0 Over Cat5 Extender (up To UCE260-AT-U

Sku: UCE260-AT-U

Availability: In Stock

Brand: ATEN

Category: USB Adaptors

$116.60

The ATEN UCE260 USB 2.0 Extender extends your USB device or hub connection up to 60 meters (196 feet) via Ethernet cable, supporting high-speed (480Mb/s), full-speed (12Mb/s), and low-speed (1.5Mb/s) USB devices. This cost-effective solution offers easy, plug-and-play functionality with no software drivers needed and includes an AC adapter for stable power supply.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: Aten | Model: UCE260-AT-U



UCE260 can easily send the USB signals via Ethernet Cable up to 60 meters (196 ft) at data rate of High Speed (480Mb/s) , Full Speed (12Mb/s) and Low Speed (1.5Mb/s). Without any configuration or software driver, this USB extender allows you to extend your USB device or hub up to 60m from your computer, which overcomes the typical USB cable limitation.



Package Contents

  • 1x Local Unit with USB Cable
  • 1x Remote Unit
  • 1x Power Adapter (5V, 2.6A)
  • 1x User Instructions



  • Supports any High-Speed (480Mb/s), full-speed (12 Mb/s) or low-speed (1.5 Mb/s) USB devices
  • Extends signal transmission distance of a USB devices up to 60m via an Ethernet Cable
  • Includes an AC adapter to stabilize power supply
  • Hot-Pluggable
  • The most cost-effective USB extender solution
  • No additional software driver required

Function Local Unit Remote Unit
Connectors
USB Port 1 x USB Type A Male 1 x USB Type A Female
Link 1 x RJ45 Female 1 x RJ45 Female
Power N/A 1 x DC Power Jack
USB Specification 2.0 For High / Full / Low Speed 2.0 For High / Full / Low Speed
USB Devices Supported N/A 1 Device
?Note?Please verify the compatibility of the USB video device with the manufacturer.
Power Consumption DC5V:0.65W:3BTU/h

Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.		 DC5V:0.95W:15BTU/h

Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0–40°C 0–40°C
Storage Temperature -20–60°C -20–60°C
Humidity 0–80% RH, Non-condensing 0–80% RH, Non-condensing
Physical Properties
Housing Plastic Plastic
Weight 0.04 kg ( 0.09 lb ) 0.02 kg ( 0.05 lb )
Dimensions (L x W x H) 6.30 x 3.10 x 2.19 cm
(2.48 x 1.22 x 0.86 in.)		 6.30 x 3.10 x 2.19 cm
(2.48 x 1.22 x 0.86 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
