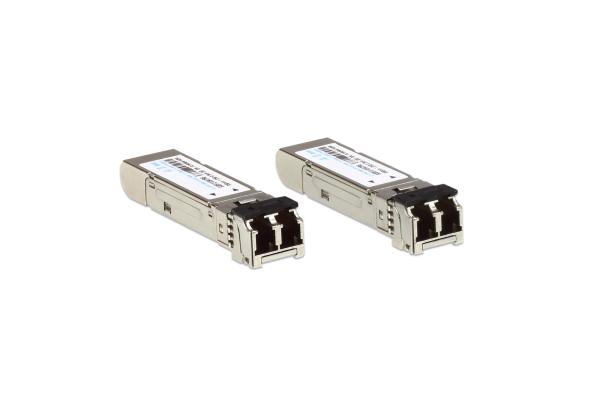

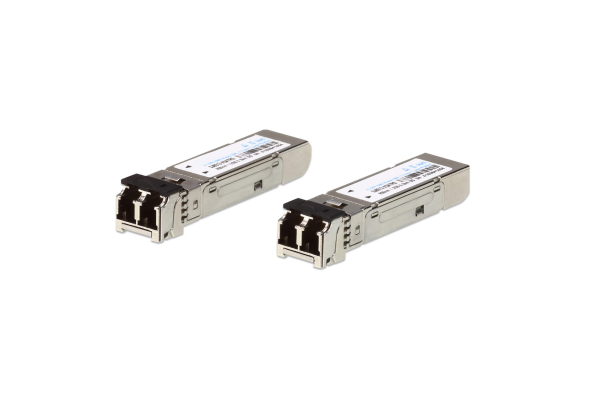

Aten 1.25G Multi-Mode/550M Fiber SFP Module

Sku: 2A-136G

Availability: Out of Stock

Brand: ATEN

Category: KVM Cables-Accessories

$140.80

The 2A-136G 1.25G Multi-Mode/550M Fiber SFP Module provides reliable 1 GbE connectivity over multi-mode fiber up to 550 meters, featuring hot-pluggable design, high performance, and compliance with safety and industry standards.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: Aten | Model: 2A-136G



The 2A-136G 1.25G Multi-Mode/550M Fiber SFP Module provides 1 GbE connectivity up to 550 meters. The transceiver can be installed in both transmitters and receivers. As a hotpluggable module with a standard duplex connector for fiber communications, the 2A-136G works with multi-mode-fiber (MMF) connections and operates at a nominal wavelength of 850 nm which makes it a cost-effective and high performance transceiver.



Package Contents

  • 2 x 1.25G Multi-Mode/550M Fiber SFP Module



  • Extend your network connectivity up to 550 meters
  • Differential Inputs and Outputs
  • Small Form Factor Pluggable MSA (SFP Multi-Source Agreements standards) Compliant
  • Compliant with SFF-8472 MSA Digital Diagnostic Monitor (DDM), Internal Calibration
  • Class 1 Laser International Safety Standard IEC 825 Compliant. Complies with EN60825-1 and FDA 21 CFR 1040.10 and 1040.11
  • Operation Temperature from 0° C to 70° C
  • RoHS Compliant

Fiber Optics
Data Rate 1.25 Gbps
Operating Distance 550 m
Fiber Type Multi Mode
Connector Type LC
DDM Yes
Environmental
Operating Temperature 0-70°C
Storage Temperature -40-85°C
Physical Properties
Weight 0.02 kg ( 0.04 lb )
Dimensions (L x W x H) 5.59 x 1.46 x 1.30 cm
(2.2 x 0.57 x 0.51 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
