Sku: TH-3070-CTLW
Brand: ATDEC
Category: Monitor Brackets
Availability: On Order
On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.
Shipping Calculator
Find
Product code: TH-3070-CTLW, Weight Capacity: 143 lb (63 kg), Drop Length: 41 - 75" (1 - 1.9 m), VESA Pattern: 200 x 200 to 800 x 500 mm, Rotation: 360°, Tilt Range: -10 to 20°, Weight: 33 lb (15 kg).

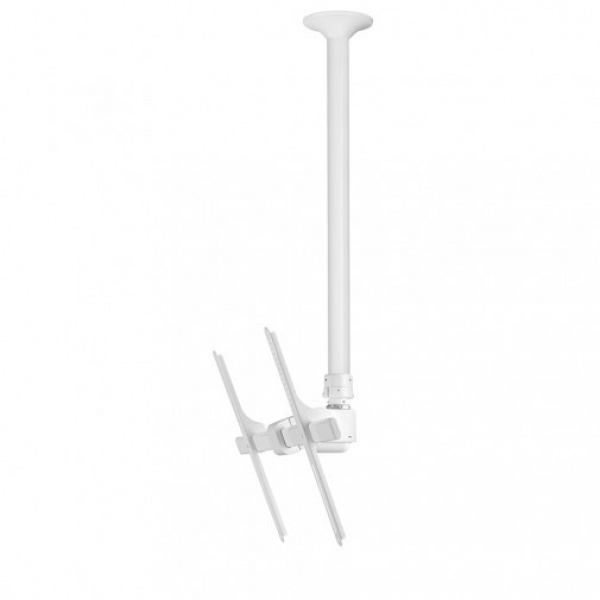

This is the long Atdec Ceiling Tilt Mount, in White, for displays weighing up to 143 lb. Suspend your display from a ceiling, adjust it to 41 - 75", tilt it -10 to 20°, and rotate it a full 360°. Attach the display in portrait or landscape orientation to the mount's universal VESA pattern (200 x 200 to 800 x 500mm).
We Accept
Manufacture # Atdec | Model # TH-3070-CTLW
This is the long Atdec Ceiling Tilt Mount, in White, for displays weighing up to 143 lb. Suspend your display from a ceiling, adjust it to 41 - 75", tilt it -10 to 20°, and rotate it a full 360°. Attach the display in portrait or landscape orientation to the mount's universal VESA pattern (200 x 200 to 800 x 500mm). Cable management features and a false ceiling cover allow for a clean, elegant look. Additionally, you can integrate the optional Adtec TH-3070-CT-B2B frame to support dual displays in a back-to-back configuration.
Features:
Overview:
Manufacturer Warranty: 10 Years Limited Warranty
| Brand | ATDEC |
| Product code | TH-3070-CTLW |
| Weight Capacity | 143 lb (63 kg) |
| Drop Length | 41 - 75" (1 - 1.9 m) |
| VESA Pattern | 200 x 200 to 800 x 500 mm |
| Rotation | 360° |
| Tilt Range | -10 to 20° To achieve a maximum downward tilt of 20°, the display height should be up to 45". For displays with greater height, there will be a reduction in the achievable tilt angle. |
| Construction | Steel and aluminum |
| Dimensions | Fully Extended (without Monitor): Approximately 34.0 x 74.8 x 6.5" (86.4 x 190.0 x 16.5 cm) Fully Retracted (without Monitor): Approximately 34.0 x 41.3 x 6.5" (86.4 x 105.0 x 16.5 cm) |
| Weight | 33 lb (15 kg) |
| Standard Warranty* | 10 years limited warranty |
