Atdec AWM-BT-B Super heavy duty tilt head - Black

Description

Manufacture # ATDEC | Model # AWM-BT-B

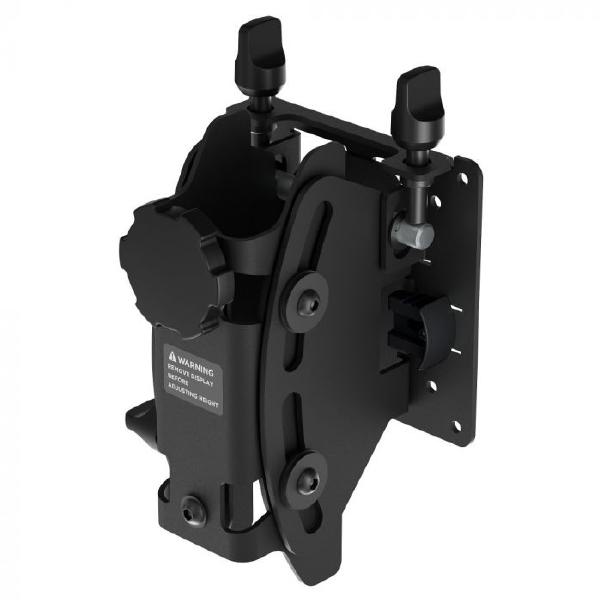

AWM-BT is a super heavy duty VESA head for mounting large and deeply curved monitors, including super ultrawide, to 55". It is part of the AWM family and should be assembled with an AWM post, most commonly the AWM-P40G or AWM-P75G.

This head suits all Samsung 49" displays and is designed for robust versatility. In addition to tilt adjustment -10° to +10° back and forward, this head has micro adjustments that are particularly useful for mounting two stacked ultrawide displays. Fine height adjustment of -6mm to +6mm (+/-0.2") and tilt adjustment -3° to +3° enables precise positioning and elimination of gaps where two displays are stacked.

Features:

• Heavy monitors
• Flat displays to 25kg (55lb)
• Curved displays to 18kg (40lb)
• Monitor size 24" to 55"
• Deeply curved monitors
• Maximum overall monitor depth 300mm (12")
• Landscape or portrait display orientation

Overview:

• Material: Steel
• Colour Options: Black
• Length, single unit (cm): 24
• Width, single unit (cm): 16.8
• Height, single box (cm): 16
• Weight, master carton, kg: 15.00
• Weight, single unit, kg: 1.50

Manufacturer Warranty: 10 Years Limited Warranty
