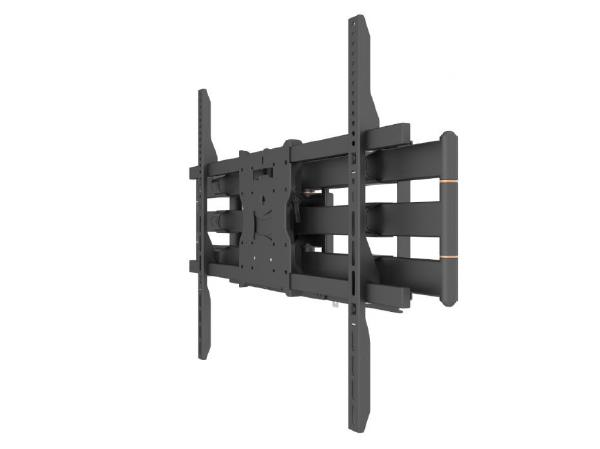

Atdec AD-WM-9080 Full Motion Wall Mount Displays up to 50"-100" 90kg

Description

Manufacture # ATDEC | Model # AD-WM-9080

AD-WM-9080 is designed for large and/or heavy displays, in installations requiring full motion and extremely long arm extension. AD-WM-9080 enables the lateral shift of the centre of the display, upward and downward tilt, and rotational display adjustment – plus almost a metre extension from the wall. The mount accommodates use on stud walls with 24” stud spacing.

Features:

• Arm extension to 980mm (39”) from wall
• Lateral shift during installation
• Pan, up/down tilt, and rotational adjustment with display mounted
• Integrated cable management
• VESA mounting pattern 100x100 to 800x600
• Pre-assembled for quick and easy installation

Overview:

• Material: Steel
• Minimum display weight, kg: 0.00
• Flat screen: maximum supported weight, kg: 90.00
• Range of motion: Full motion
• Spring assisted height adjustability: No
• Tilt adjustment: +5° / -10°
• Pan adjustment: +/- 90°
• Horizontal levelling adjustment: +/- 5°
• Height adjustable: No
• Landscape to portrait screen rotation: No
• Minimum distance from wall (mm): 110mm (4")
• Maximum distance from wall (mm): 980mm (39")

Manufacturer Warranty: 10 Years Limited Warranty
