Sku: 90MC0CE0-M0UAY0
Brand: Asus
Category: AMD Boards
Availability: On Order
On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.
Shipping Calculator
Find
Product Type: USB4 Add-on Card, Model: 90MC0CE0-M0UAY0, Interface: PCIe 4.0 x4, Ports: Dual USB Type-C (USB4 40Gbps) & Dual DP IN, Power Delivery: 60W Quick Charge, Display: DP 1.4 (8K@60Hz), OS: Windows 11/10 (64-bit)
We Accept
Manufacture # ASUS | Model # 90MC0CE0-M0UAY0

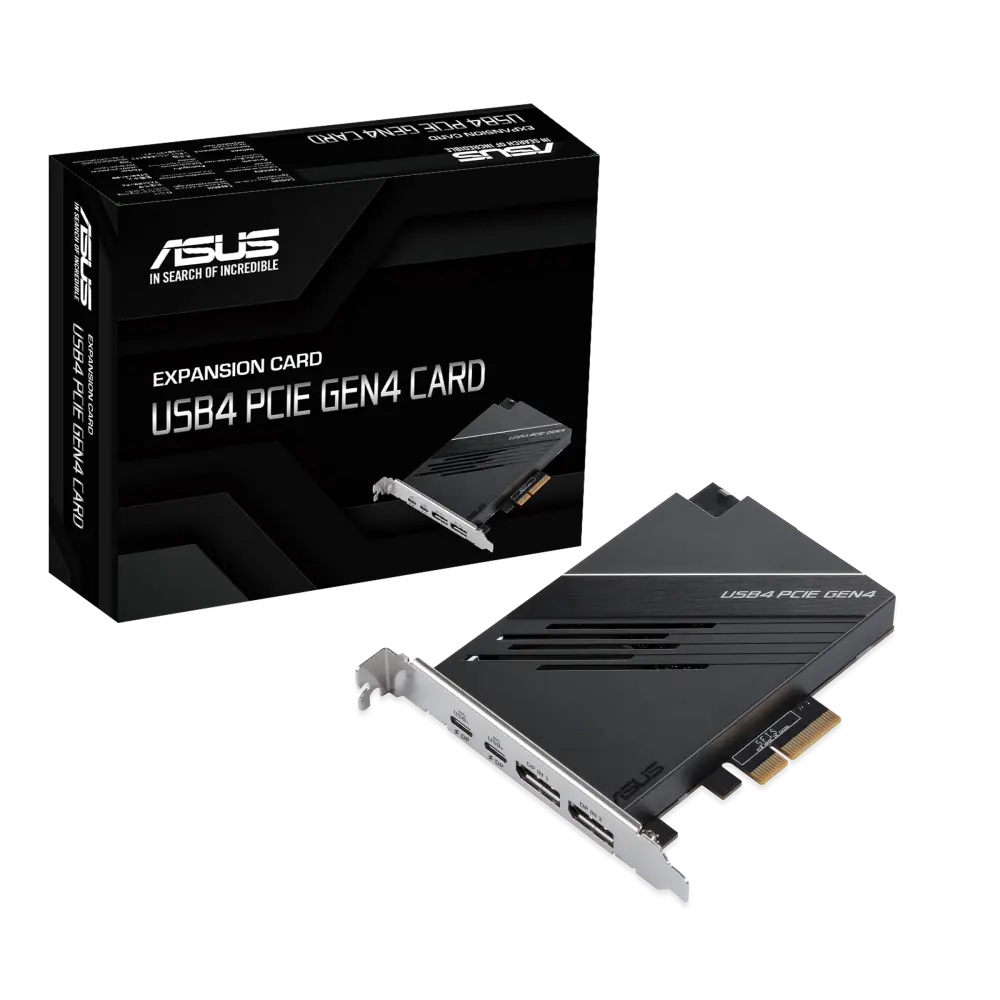

ASUS USB4 PCIe Gen4 Card is an USB4® add-on card that offers 40 Gbps bi-directional bandwidth, design for USB4® device compatibility, including the future arrival of faster USB4® drives, guaranteed for two external 4K monitors and provide dual 20V/3A 60W Quick charge features.
Key Features:
Manufacturer Warranty: 01 Years Limited Warranty
| Product Family | USB4 PCIe Gen4 Card |
| Model Number | 90MC0CE0-M0UAY0 |
| Product Type | Add-on Card / Expansion Card |
| Host Interface | PCIe 4.0 x4 |
| Controller | ASMedia® USB4® ASM4242 Controller |
| External Ports | 2 x USB Type-C® ports (Support USB4® technology) |
| Input Ports | 2 x DisplayPort IN ports |
| Data Bandwidth | Up to USB 40Gbps (bi-directional) |
| Quick Charge (PD) | Up to 20V/3A, 60W quick charge feature (per Type-C port) |
| Power Connector | 1 x 6-pin PCIe power connector (for quick charge function) |
| Video Support | DisplayPort 1.4 |
| Max Resolution | Supports max. 8K@60Hz (depends on VGA source) |
| Daisy Chain | Up to 5 USB4® devices per port |
| Required Motherboard Header | 1 x USB4® header on motherboard |
| Additional Header | 1 x USB 2.0 header |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Dimensions (H x L) | 4.7 inch x 7.1 inch (11.95 cm x 18.05 cm) (Full-Height/Half-Length Bracket) |
| Accessories Included | 2 x DisplayPort cables, 1 x USB 2.0 cable, 1 x 14-1 pin USB4 header cable, 1 x User manual |
