Sku: TUF GAMING B650EM-PLUS WIFI
Brand: Asus
Category: AMD Boards
Availability: In Stock
Ships in 1-2 days.
Pickup from Seven Hills in 1-2 days.
Shipping Calculator
Find
Product Type: Micro-ATX Motherboard, Model: TUF GAMING B650EM-PLUS WIFI, CPU Socket: AMD AM5, Chipset: AMD B650, Memory: DDR5 (Max. 256GB), Primary PCIe Slot: 1x PCIe 5.0 x16, Primary M.2 Slot: 1x PCIe 5.0 x4, LAN: 2.5Gb Ethernet, Wireless: Wi-Fi 6E, Form Factor: Micro-ATX, Audio: Realtek 7.1 Surround Sound HD Audio
We Accept
Manufacture # ASUS | Model # TUF GAMING B650EM-PLUS WIFI

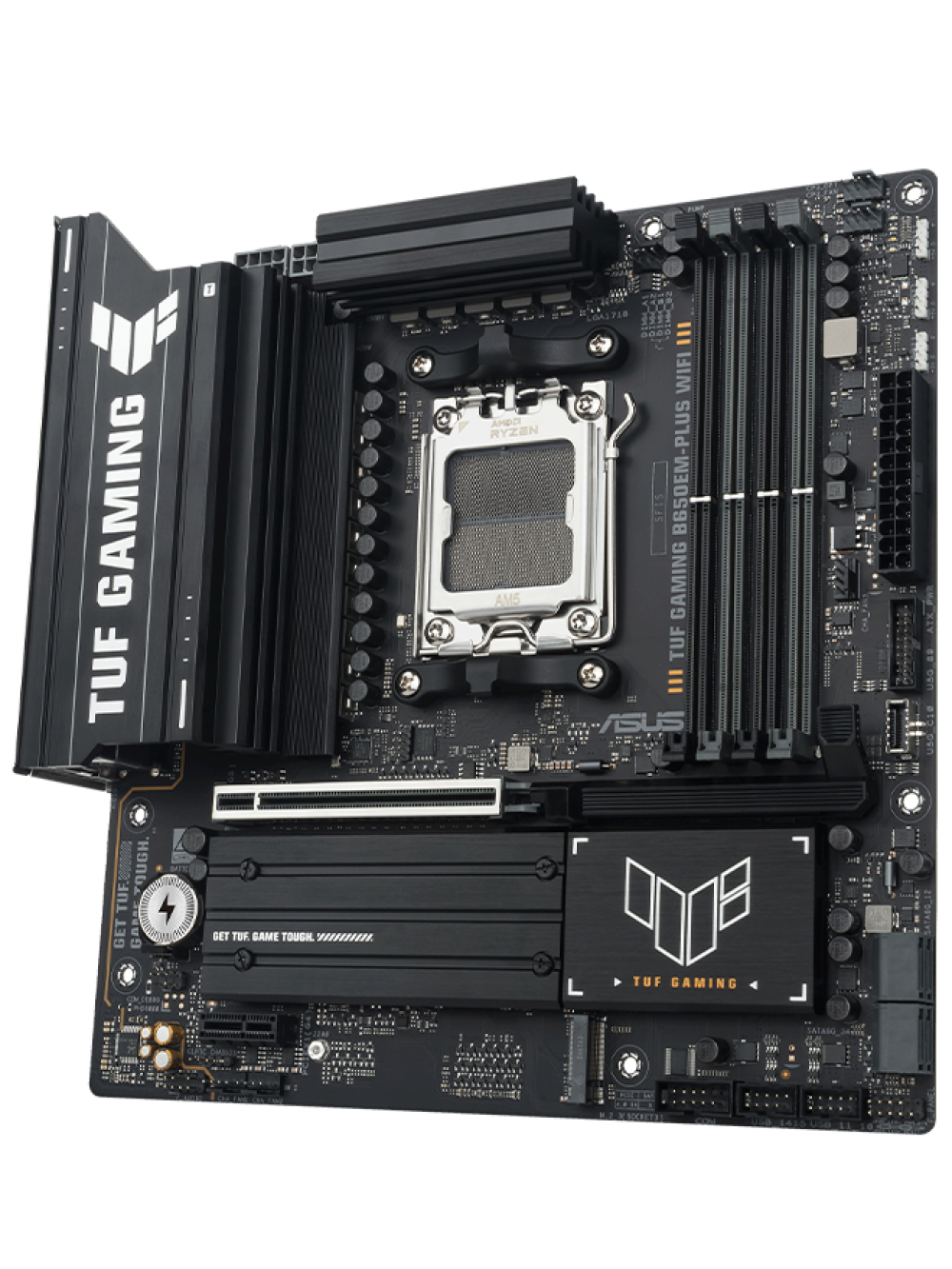

ASUS TUF GAMING B650EM-PLUS WIFI takes all the essential elements of the latest AM5 Socket for AMD Ryzen™ Desktop Processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series. This platform delivers the power and connectivity that advanced AI PC applications demand.
Key Features:
Manufacturer Warranty: 01 Years Limited Warranty
| Product Family | ASUS TUF Gaming |
| Model Number | TUF GAMING B650EM-PLUS WIFI |
| Product Type | Micro-ATX Motherboard |
| CPU Socket | AMD Socket AM5 (for AMD Ryzen™ 7000/8000/9000 Series Desktop Processors) |
| Chipset | AMD B650 |
| Form Factor | Micro-ATX (mATX) |
| Memory Slots | 4 x DIMM, Dual Channel, Max. 256GB, DDR5 |
| Memory Type | DDR5 (Supports AMD EXPO™) |
| Primary PCIe Slot | 1 x PCIe 5.0 x16 slot (from CPU) |
| Expansion Slots | 1 x PCIe 5.0 x16 (x16 mode), 1 x PCIe 4.0 x16 (max. x4 mode from Chipset), 1 x PCIe 4.0 x1 |
| M.2 Storage Slots (Total) | 3 |
| M.2 Slot 1 (CPU) | M.2_1 slot (Key M), type 2280, supports PCIe 5.0 x4 mode |
| M.2 Slot 2 (CPU/Chipset) | M.2_2 slot (Key M), type 2280, supports PCIe 4.0 x4 mode |
| M.2 Slot 3 (Chipset) | M.2_3 slot (Key M), type 2280, supports PCIe 4.0 x4 mode |
| SATA Ports | 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet (TUF LANGuard) |
| Wireless Connectivity | Wi-Fi 6E (802.11ax), Bluetooth v5.3 |
| Rear USB Ports | 1 x USB 20Gbps (Type-C®), 2 x USB 10Gbps (Type-A), 1 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A) |
| Front USB Headers | 1 x USB 5Gbps Type-C® connector, 1 x USB 5Gbps header (supports 2 ports), 2 x USB 2.0 headers (supports 4 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Video Output (Onboard) | 1 x DisplayPort, 1 x HDMI™ port (Requires compatible CPU with integrated graphics) |
| Special Features | PCIe Slot Q-Release, M.2 Q-Latch, BIOS FlashBack™ Button, Enlarged VRM and M.2 Heatsinks |
