Sku: TUF GAMING B650E-PLUS WIFI
Brand: Asus
Category: AMD Boards
Availability: On Order
On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.
Shipping Calculator
Find
Product Type: Gaming Motherboard, Model: TUF GAMING B650E-PLUS WIFI, Socket: AM5, Chipset: AMD B650, RAM: 4x DDR5 (Max. 256GB, up to 8000+ MT/s OC), Storage: 1x M.2 PCIe 5.0 x4 + 2x M.2 PCIe 4.0 x4 + 4x SATA 6Gb/s, Primary PCIe: 1x PCIe 5.0 x16, LAN: 2.5Gb Ethernet, Wireless: Wi-Fi 6E, USB: Rear USB 20Gbps Type-C, Form Factor: ATX
We Accept
Manufacture # ASUS | Model # TUF GAMING B650E-PLUS WIFI

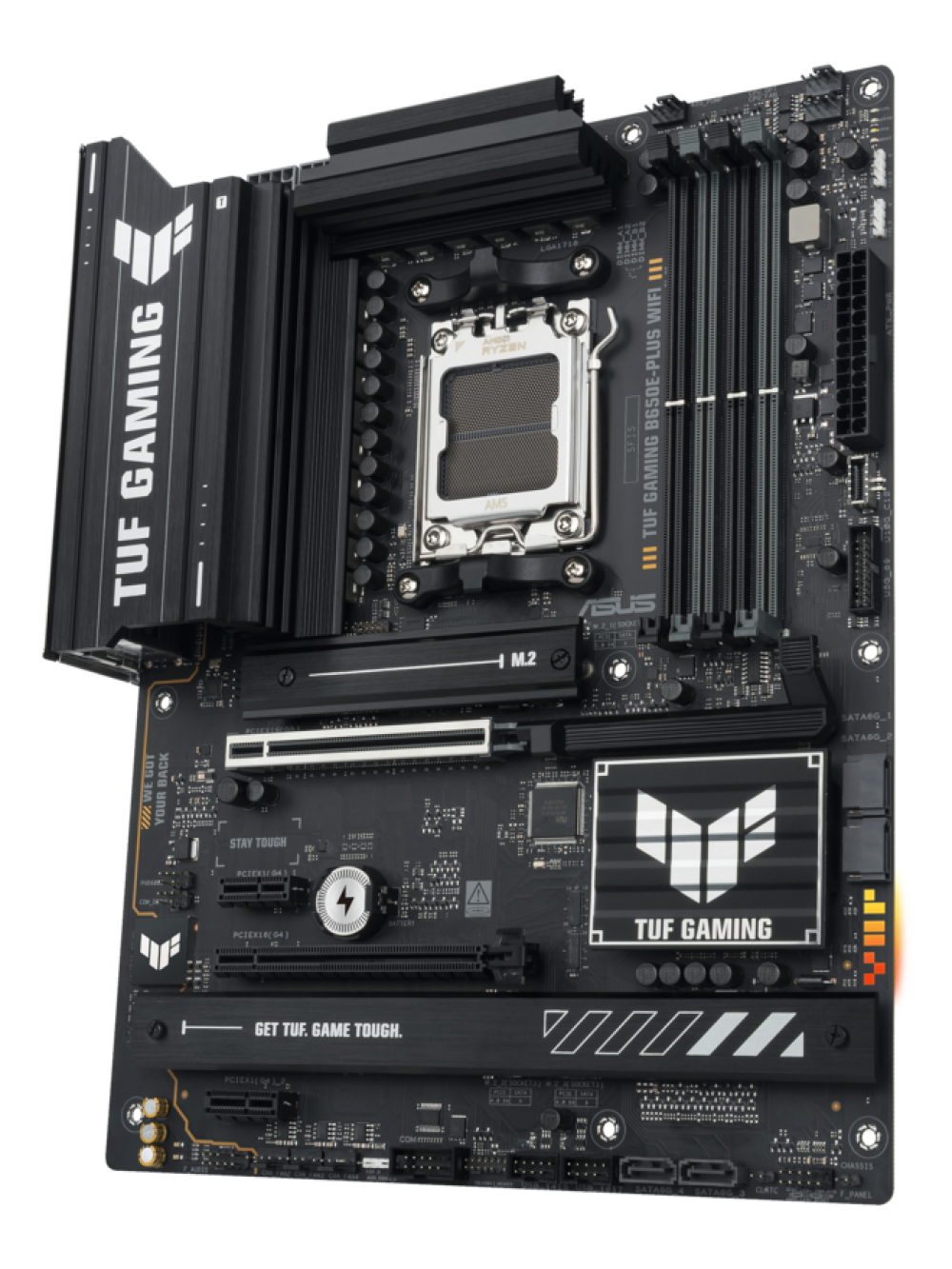

ASUS TUF GAMING B650E-PLUS WIFI takes all the essential elements of the latest AM5 Socket for AMD Ryzen™ Desktop Processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series. This platform delivers the power and connectivity that advanced AI PC applications demand.
Key Features:
Manufacturer Warranty: 02 Years Limited Warranty
| Product Family | ASUS TUF GAMING |
| Model Number | TUF GAMING B650E-PLUS WIFI |
| Product Type | ATX Motherboard |
| CPU Socket | AMD Socket AM5 (for Ryzen™ 9000/8000/7000 Series) |
| Chipset | AMD B650 |
| Memory Type | DDR5 (Dual Channel) |
| Memory Slots | 4 x DIMM Slots |
| Max Memory Capacity | 256GB |
| Max Memory Speed (OC) | Up to 8000+ MT/s (OC) |
| PCIe (Primary GPU Slot) | 1 x PCIe 5.0 x16 (SafeSlot) |
| PCIe (Other Slots) | 1 x PCIe 4.0 x16 (supports x4 mode), 2 x PCIe 4.0 x1 |
| M.2 Storage Slots | 3 Total (1x PCIe 5.0 x4, 2x PCIe 4.0 x4) |
| SATA Ports | 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet (TUF LANGuard) |
| Wireless Connectivity | Wi-Fi 6E (802.11ax), Bluetooth v5.3 |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Rear I/O (Key USB) | 1 x USB 20Gbps Type-C® (USB 3.2 Gen 2x2), 3 x USB 10Gbps Type-A (USB 3.2 Gen 2) |
| Front I/O (Key Connector) | 1 x USB 10Gbps Type-C® Header (USB 3.2 Gen 2), 1 x Thunderbolt™ (USB4®) Header |
| Power Stages | 12(80A)+2(80A)+1(80A) DrMOS |
| Form Factor | ATX (12 inch x 9.6 inch / 30.5 cm x 24.4 cm) |
