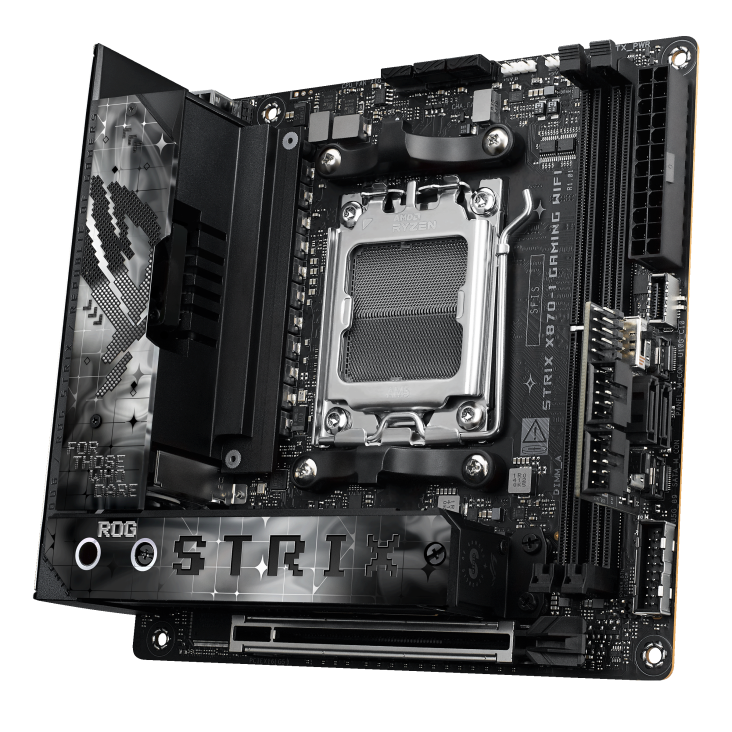

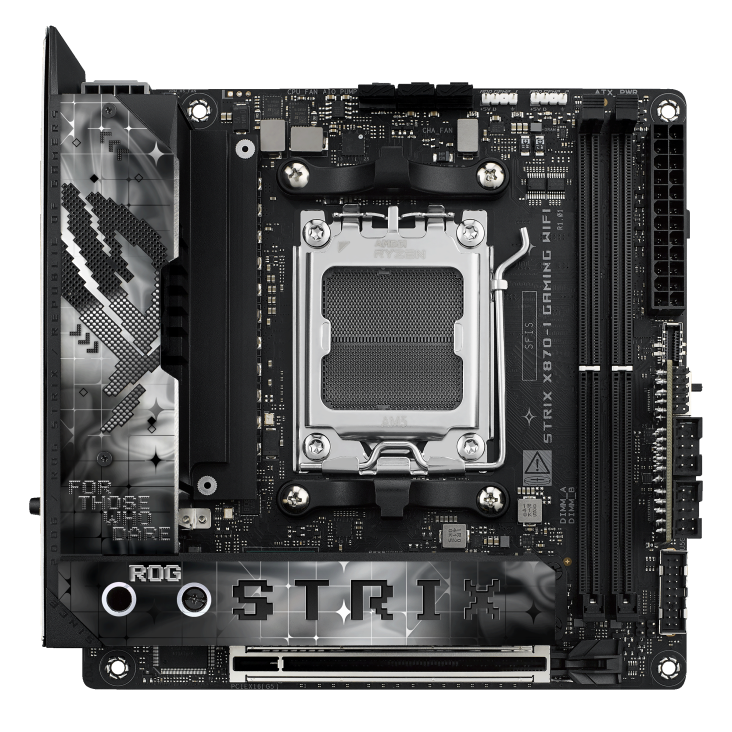

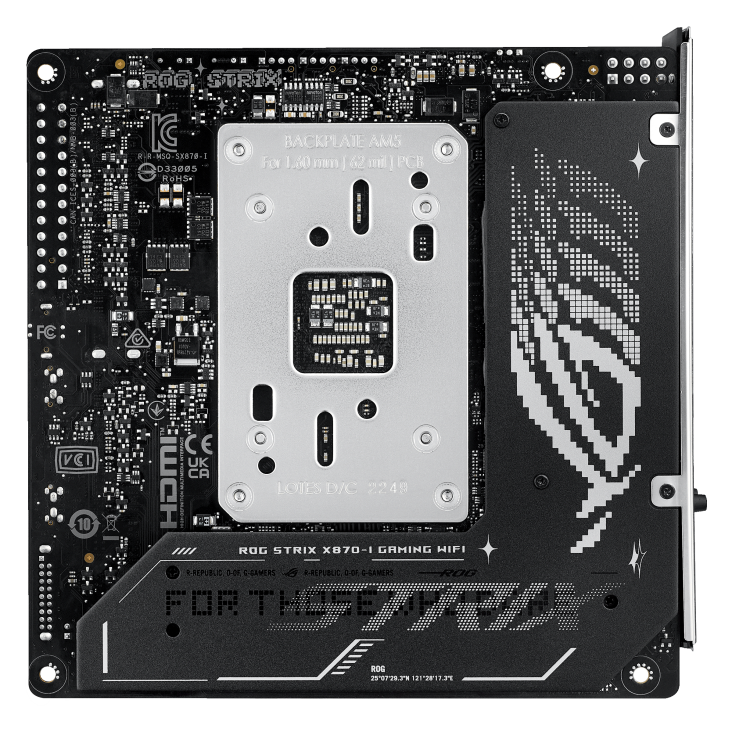

The ROG STRIX X870‑I GAMING WIFI is a high-end mini‑ITX motherboard for AMD’s AM5 platform, designed to support Ryzen 7000–9000 series CPUs. It packs robust power delivery, dual M.2 slots including PCIe 5.0 support, Wi‑Fi 7, USB4, and built-in ROG Strix Hive II control—ideal for compact, powerful gaming or AI-focused builds.
We Accept
Manufacture: ASUS | Model: ROG STRIX X870-I GAMING WIFI

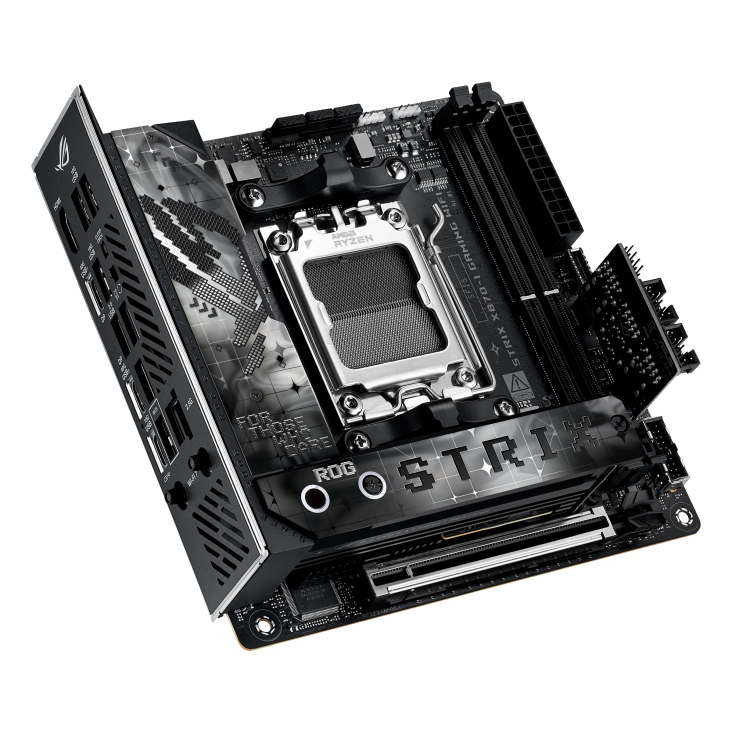

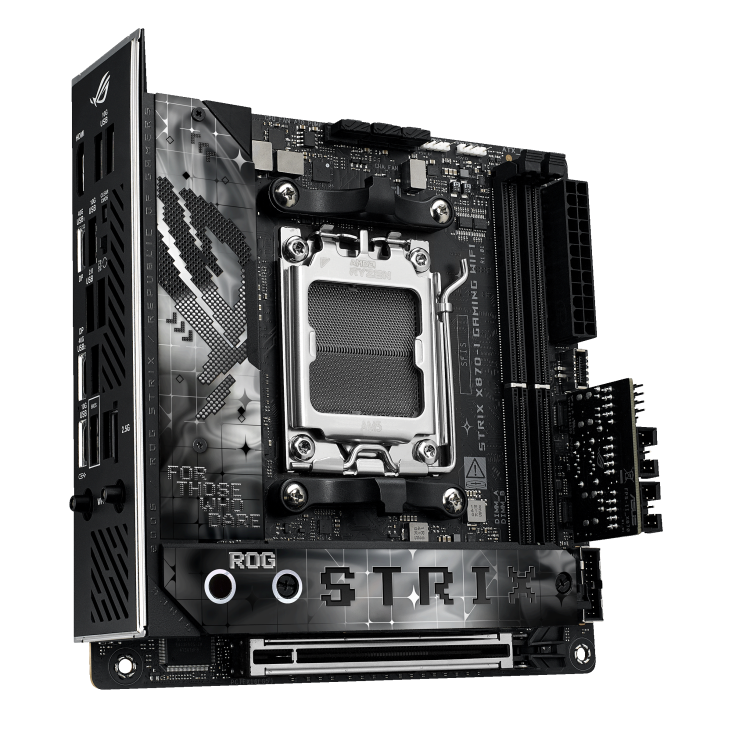

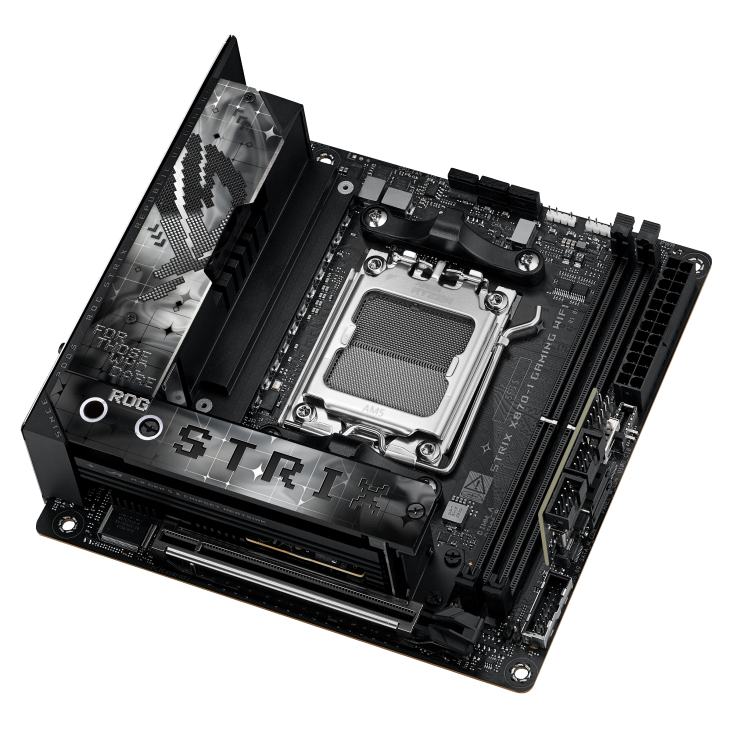

The ROG STRIX X870‑I GAMING WIFI brings desktop-level features into a compact 17 × 17 cm form factor. With a strong 10+2+1 power stage VRM and advanced cooling, it supports serious overclocking and sustained CPU performance. Dual-channel DDR5 memory (up to 128 GB, 8600+ MT/s OC) with ASUS memory tuning features ensures speedy performance. The inclusion of PCIe 5.0 for both GPU and a high-speed M.2 slot makes it future-ready, while Wi‑Fi 7 and USB4 offer top-tier connectivity. The bundled ROG Hive II module and software help manage controls and monitor key system metrics conveniently, making it an excellent choice for gamers and content creators building small-form-factor PCs.
Power & Overclocking
10+2+1 110 A power stages with ProCool II connector
ASUS AI Overclocking, Core Flex, Dynamic OC Switcher, Precision Boost Overdrive
Memory
2 × DDR5 DIMM (up to 128 GB, 8600+ MT/s OC)
Support for EXPO, AEMP, DIMM Fit/Fit Pro
Storage & Expansion
1 × PCIe 5.0 x16 GPU slot
1 × PCIe 5.0 M.2 and 1 × PCIe 4.0 M.2 slot
Connectivity
Wi‑Fi 7 (320 MHz channel, up to 6.5 Gbps) & Bluetooth 5.4
Dual USB4 Type‑C ports, plus USB 3.x
2.5 Gb Ethernet with LANGuard
Cooling & Design

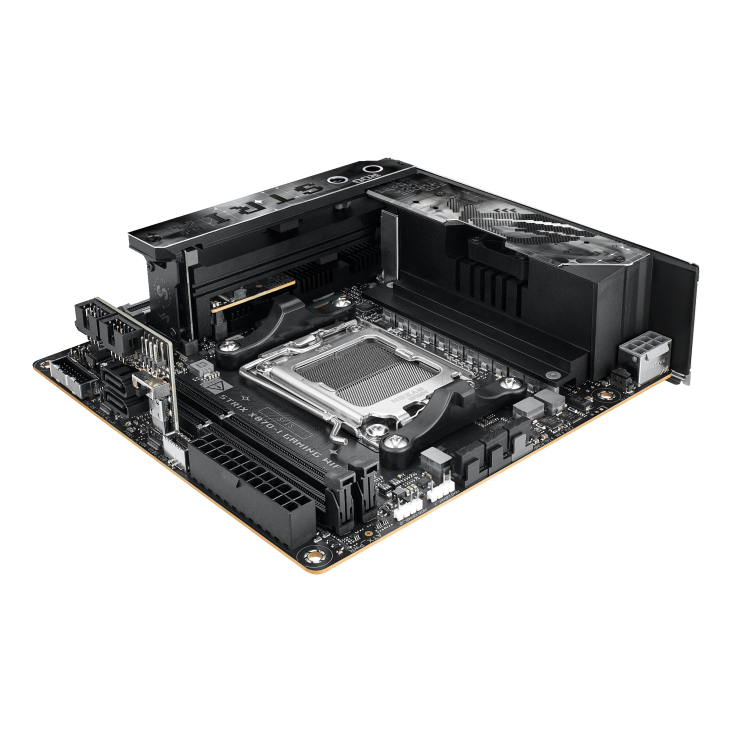

VRM and M.2 heatsinks with thermal pads

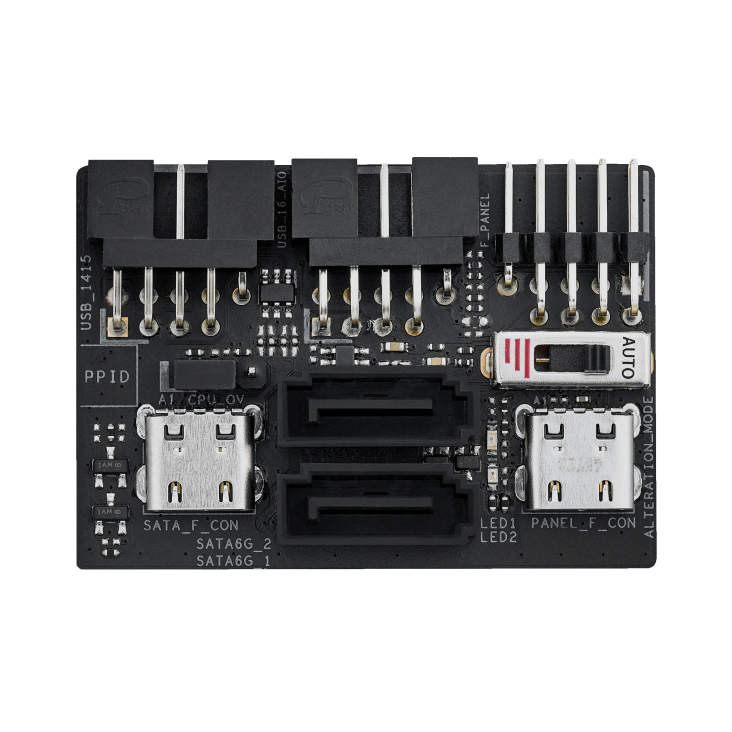

High-density fan headers and ROG Hive II add-on module
Audio & UI

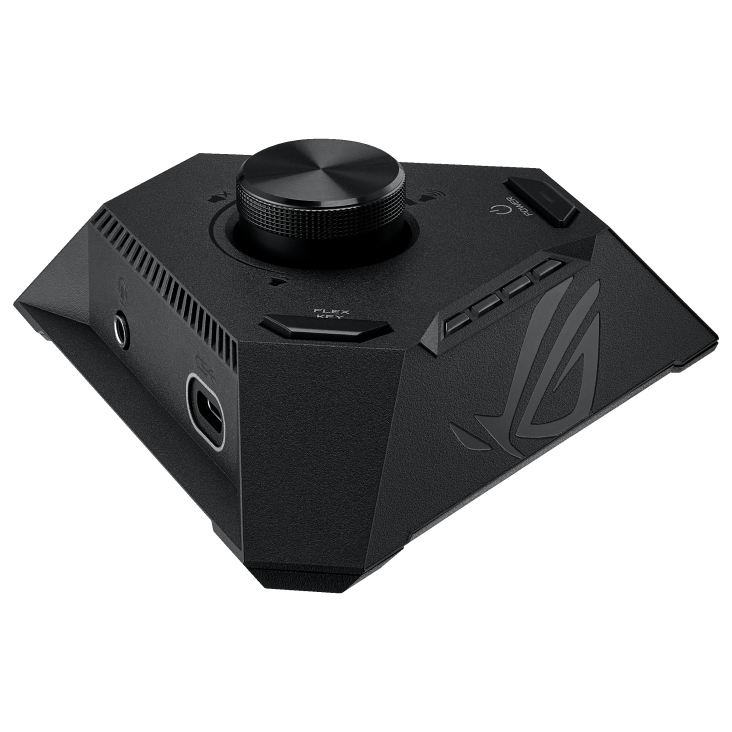

SupremeFX-grade audio via ROG Hive II (ESS DAC, shielded)
BIOS FlashBack™, Q‑LED, FlexKey, Armoury Crate utilities
| Category | Details |
|---|---|
| Form Factor | Mini‑ITX (17 × 17 cm) |
| CPU Support | AM5 socket; Ryzen 7000 / 8000 / 9000 series processors |
| VRM Power Stages | 10(110 A) + 2(110 A) + 1(80 A) |
| Memory | 2 × DDR5 DIMM, Max 128 GB, 8600+ MT/s OC |
| PCIe Slots | 1 × PCIe 5.0 x16; Dual M.2 (1 × PCIe 5.0, 1 × PCIe 4.0) |
| SATA | 2 × SATA 6 Gb/s ports |
| Network | Wi‑Fi 7 (2×2), Bluetooth 5.4, 2.5 Gb Ethernet |

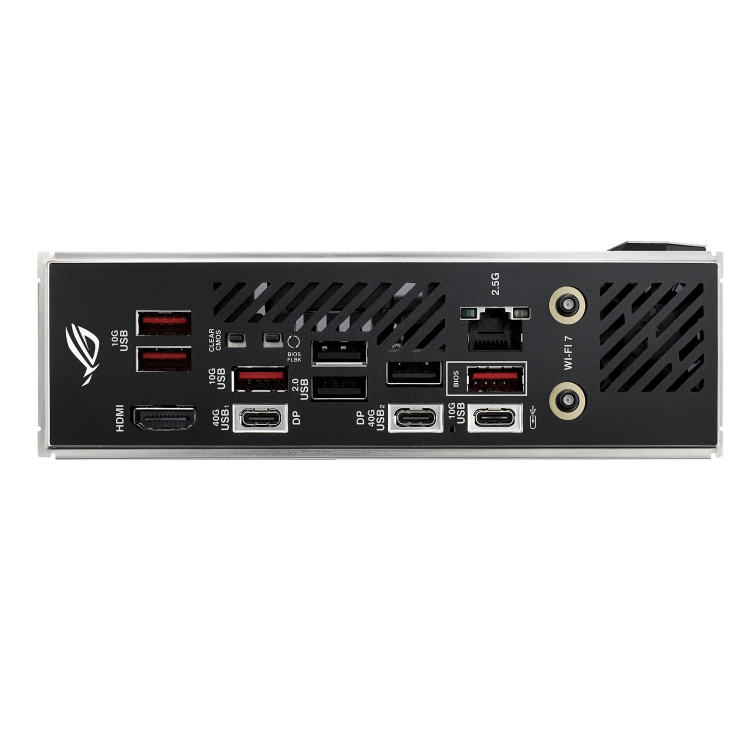

| USB (Rear) | 2 × USB4 Type‑C, 5 × USB 10 Gbps, 3 × USB 2.0 |
| USB (Front/Internal) | 1 × USB 10 Gbps Type‑C, 1 × USB 5 Gbps, 2 × USB 2.0 |
| Audio | Hive II module: ESS Sabre DAC, shielded PCB |
| Cooling Headers | CPU Fan, AIO Pump, 4 × Chassis Fan headers |
| BIOS Features | FlashBack™, Clear CMOS, Q‑Dashboard, UEFI |
| Extras | Q‑LED, FlexKey, Armoury Crate, AIDA64, AI suite, Dolby Atmos |

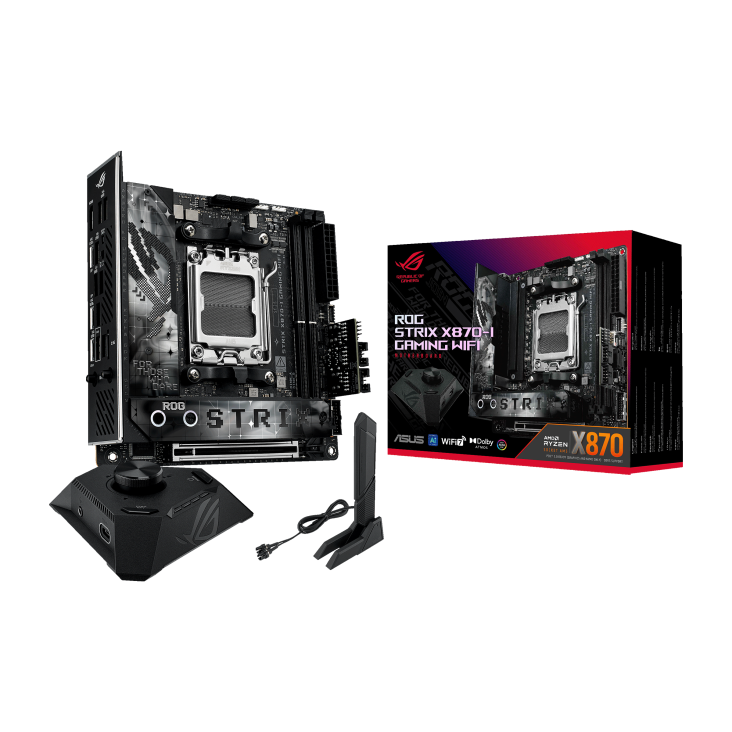

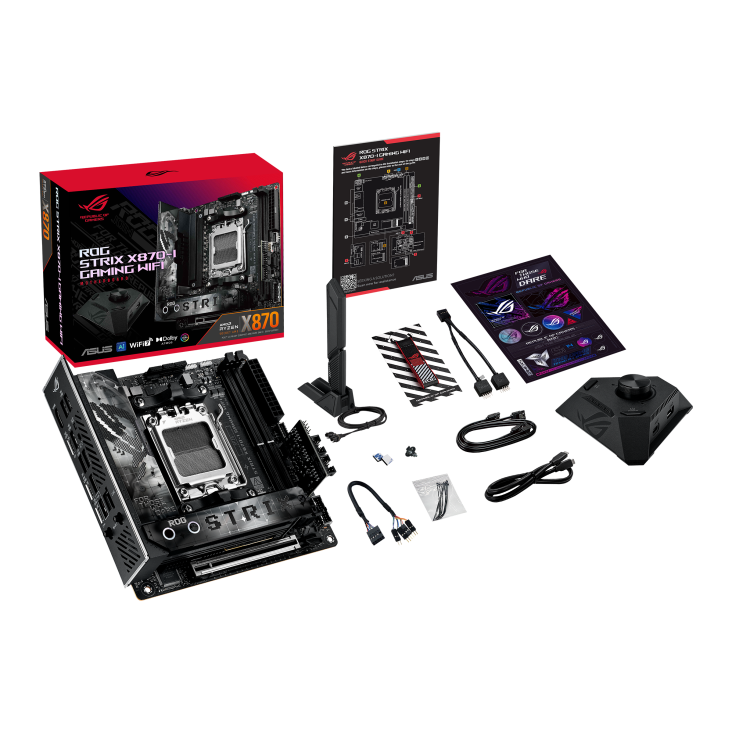

| Accessories | Hive II board, FPS card, cables, Q‑Latch, heatsink, ROG stickers |
