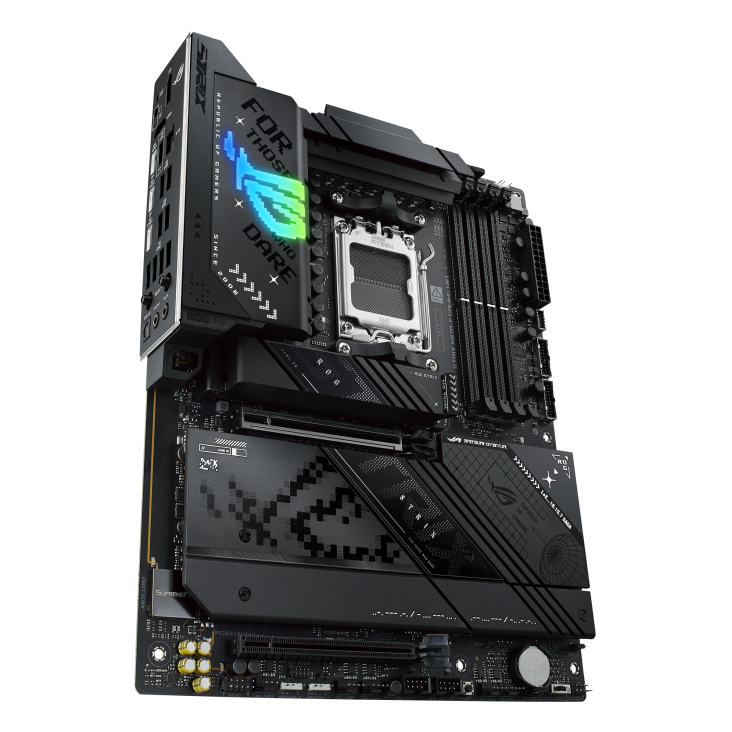

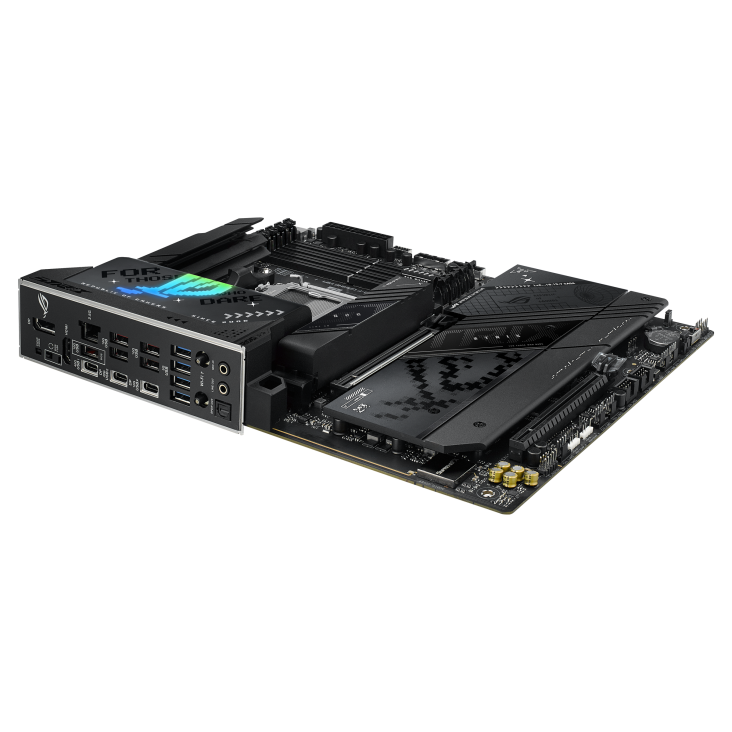

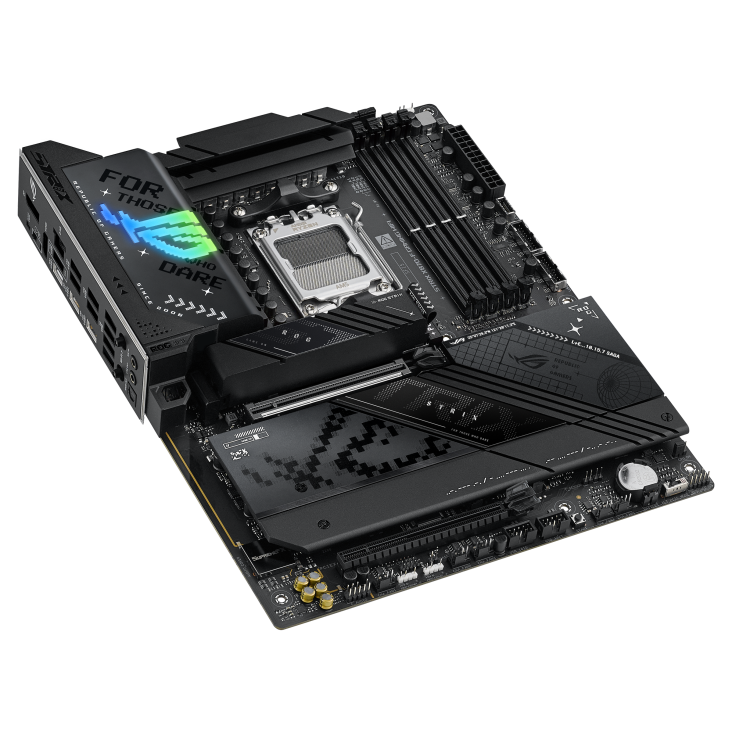

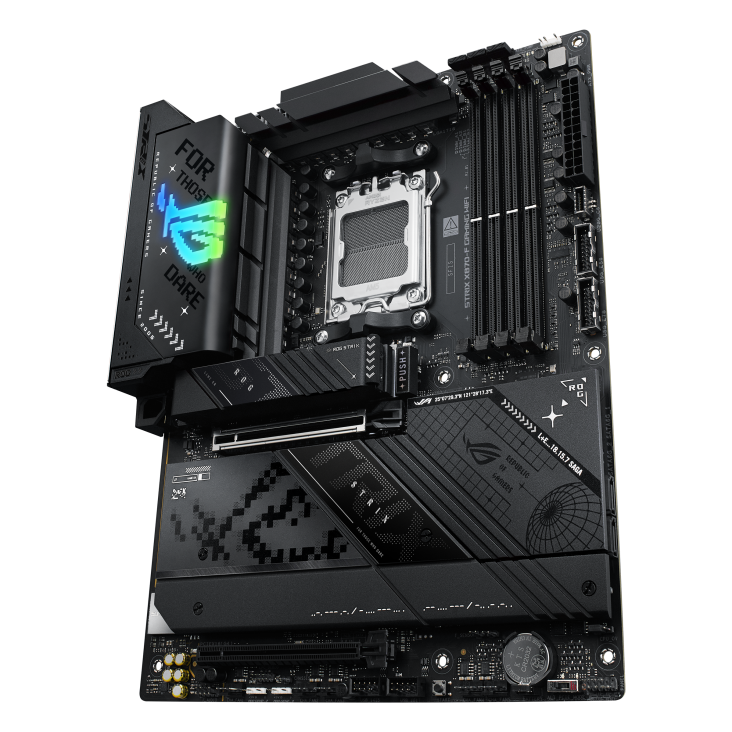

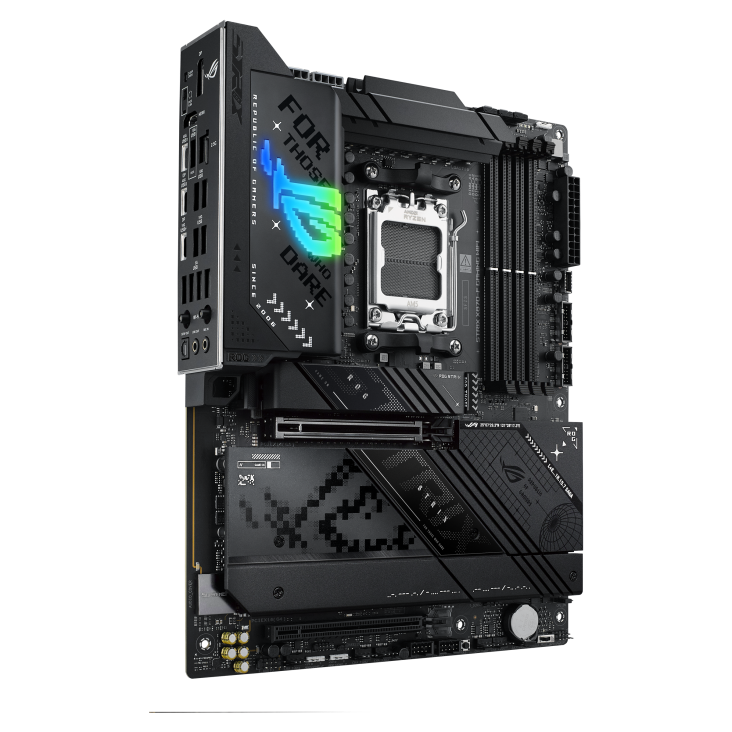

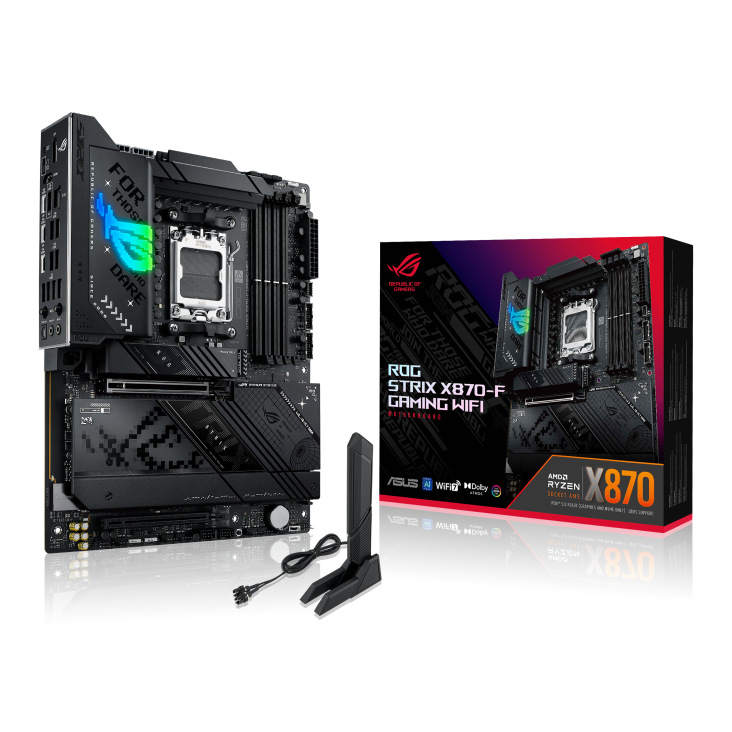

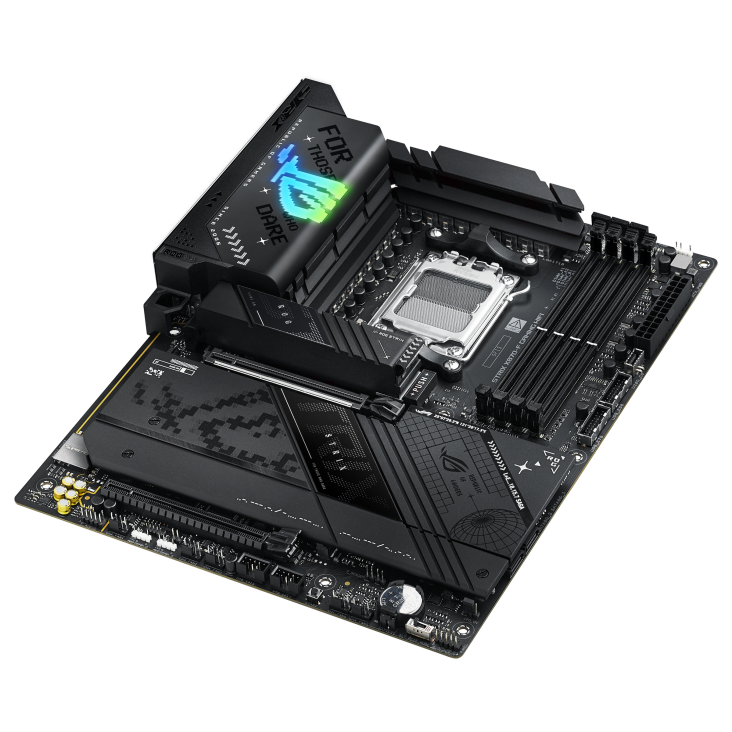

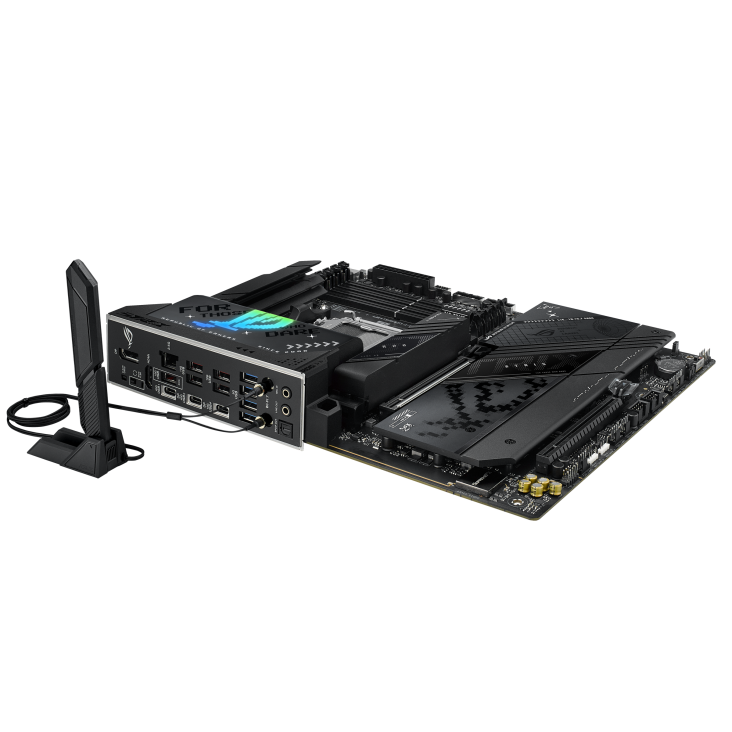

The ROG Strix X870-F Gaming WiFi is a high-performance ATX motherboard designed for AMD Ryzen™ 9000, 8000, and 7000 series desktop processors. Packed with features like AI Overclocking, DDR5 8400+ support, WiFi 7, dual USB4 ports, PCIe 5.0, and advanced thermal design, it's built for elite gaming, AI PCs, and overclocking enthusiasts.
We Accept
Manufacture: ASUS | Model: ROG STRIX X870-F GAMING WIFI
Unlock the true potential of next-gen gaming and productivity with the ROG Strix X870-F Gaming WiFi. Engineered for AMD Ryzen™ 9000/8000/7000 series processors, this ATX motherboard is loaded with premium components, intelligent AI enhancements, and future-ready connectivity. With AI Overclocking, AI Cooling II, and AI Networking II, your system optimizes itself in real-time to push performance to the edge.
Enjoy blazing-fast transfer speeds with dual USB4 Type-C® ports, WiFi 7, and PCIe 5.0 support. With 4x M.2 slots, two of which support PCIe 5.0, plus DDR5 memory up to 8400+ MT/s, the board offers massive bandwidth and future-proof memory support. DIY-friendly features such as Q-Latch, Q-LED, and a pre-mounted I/O shield simplify building, while robust VRM cooling, a 16+2+2 power stage design, and SupremeFX audio elevate your system’s stability and immersion. Ideal for high-end gaming, content creation, and AI PC applications.
CPU Support: AMD Ryzen™ 9000, 8000 & 7000 Series (Socket AM5)
AI-Enhanced Performance: AI Overclocking, Cooling II & Networking II
Power Solution: 16+2+2 power stages rated up to 110A
Memory Support: 4x DDR5 DIMM, up to 256GB, OC to 8400+ MT/s
Storage Options: 4x M.2 slots (2x PCIe 5.0, 2x PCIe 4.0), 2x SATA 6Gb/s
Expansion Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4)
Graphics Outputs: 1x DisplayPort, 1x HDMI 2.1, USB4 with DP Alt mode
Connectivity: WiFi 7, Intel® 2.5Gb Ethernet, Bluetooth® 5.4
USB Ports: Dual USB4 (40Gbps), 6x USB 10Gbps, 4x USB 5Gbps (rear), USB 20Gbps front
Audio: ROG SupremeFX 7.1 with ALC4080, Savitech AMP, optical S/PDIF
Form Factor: ATX (30.5 x 24.4 cm)
DIY Features: Q-LED, M.2 Q-Latch, PCIe Q-Release Slim, BIOS Flashback™, Q-Antenna
Software: Armoury Crate, AI Suite, AIDA64 (Trial), Dolby Atmos, Norton 360 (Trial)
| Category | Details |
|---|---|
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series, Socket AM5 |
| Chipset | AMD X870 |
| Form Factor | ATX (30.5 x 24.4 cm) |
| Memory | 4x DDR5 DIMMs, up to 256GB, 8400+ MT/s OC, Dual Channel, EXPO & AEMP support |
| Power Delivery | 16+2+2 Power Stages (110A) |
| Expansion Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4) |
| Storage | 4x M.2 slots (2x PCIe 5.0, 2x PCIe 4.0), 2x SATA 6Gb/s |

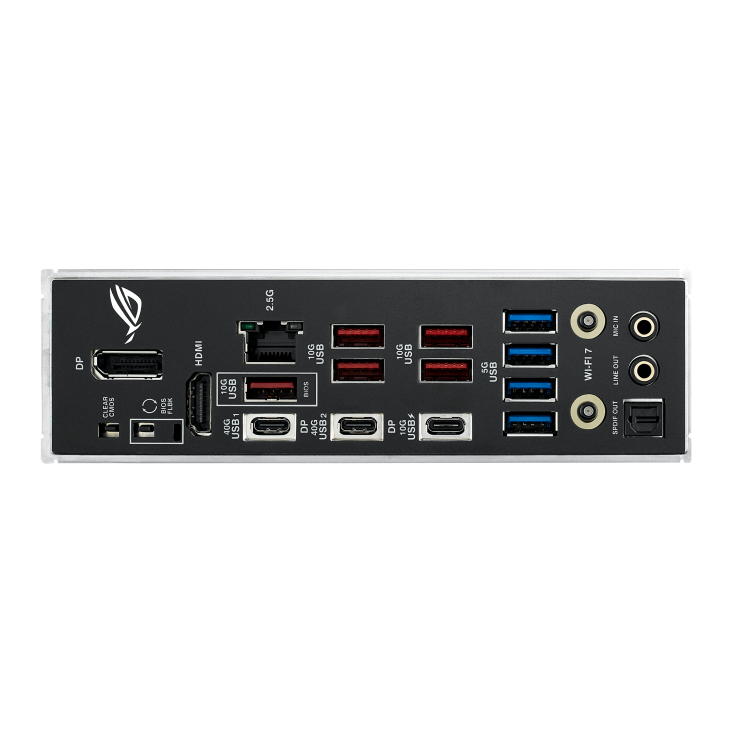

| USB (Rear) | 2x USB4 (Type-C, 40Gbps), 6x USB 10Gbps (1x Type-C, 5x Type-A), 4x USB 5Gbps |
| USB (Front) | 1x USB 20Gbps Type-C, 4x USB 5Gbps, 4x USB 2.0 |
| Display Outputs | 1x HDMI 2.1, 1x DisplayPort, USB4 Alt DisplayPort mode |
| LAN | Intel® 2.5Gb Ethernet, ASUS LANGuard |
| WiFi & Bluetooth | WiFi 7 (802.11be), Bluetooth 5.4 |
| Audio | SupremeFX ALC4080 7.1, Savitech AMP, S/PDIF, 32-bit/384kHz support |
| Cooling Headers | 1x CPU, 1x CPU OPT, 1x AIO Pump, 5x Chassis Fan |
| DIY Features | M.2 Q-Latch, PCIe Q-Release, Q-LED, BIOS Flashback™, Clear CMOS, Q-Antenna |
| Software | Armoury Crate, AIDA64 Trial, Dolby Atmos, Norton 360 Trial, WinRAR Trial |
| BIOS | 256Mb UEFI AMI BIOS with EZ Mode, CrashFree BIOS 3, Flashback™ |

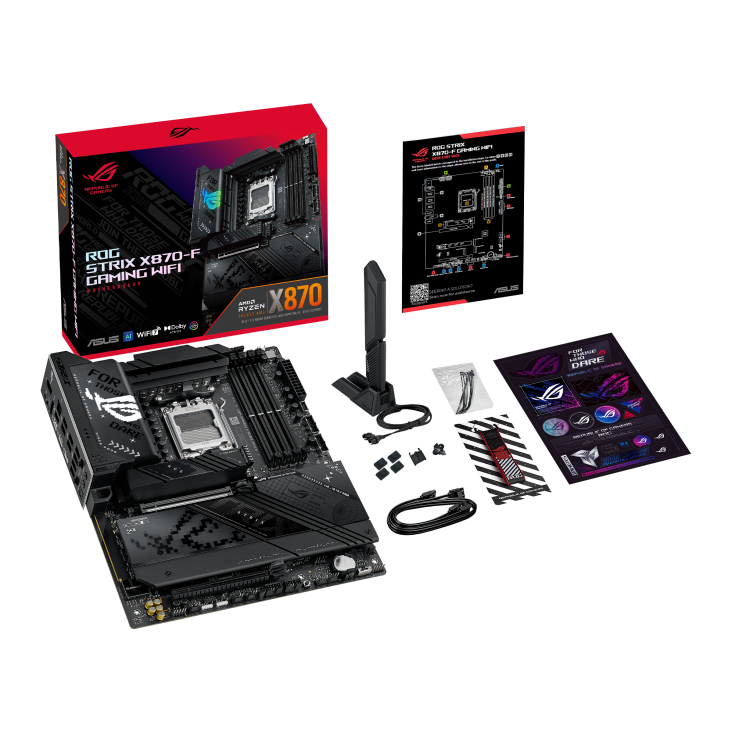

| Accessories | SATA Cables, M.2 Q-Latch, Q-Antenna, Stickers, Keychain, Thermal Pads |
| OS Support | Windows 11 |
