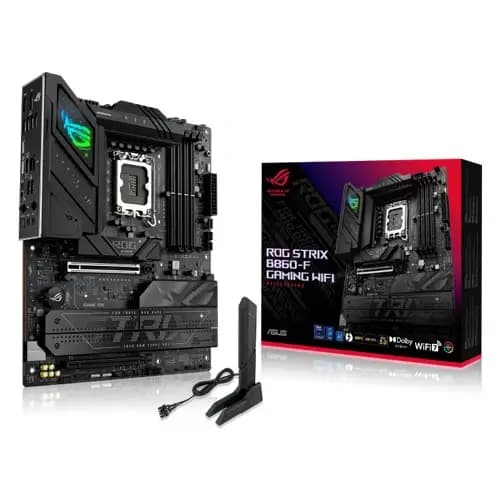

The ASUS ROG STRIX B860-F Gaming WiFi is a high-performance ATX motherboard designed for Intel® Core™ Ultra Series 2 processors. Featuring DDR5 support, PCIe 5.0, WiFi 7, Thunderbolt™ 4, and advanced AI enhancements like NPU Boost and AI Networking II, it's engineered for gamers, creators, and AI-driven PC workflows.
100% Guarantee Safe Checkout
Description
Manufacture: Asus | Model: ROG STRIX B860-F GAMING WIFI
The ROG STRIX B860-F Gaming WiFi by ASUS brings top-tier performance and cutting-edge features to gamers and power users alike. Built for Intel® Core™ Ultra (Series 2) processors on the LGA1851 socket, it integrates AI-powered technologies such as NPU Boost for faster AI workloads, AI Networking II for optimal connectivity, and ASUS AI Advisor for intuitive user guidance.
Engineered to support DDR5 memory up to 9066 MT/s, it includes AEMP III and DIMM Fit for enhanced overclocking and compatibility. Gamers benefit from a PCIe 5.0 x16 slot, Thunderbolt™ 4, and WiFi 7 + Bluetooth® 5.4 for lightning-fast data transfer and robust connectivity.
With its customizable Aura Sync RGB, precision tuning options, and advanced cooling headers, the ROG STRIX B860-F is built for future-ready, AI-enhanced computing with elite performance and rock-solid reliability.
Supports Intel Core Ultra Series 2 processors with NPU Boost
ASUS AI Suite: AI Advisor, AI Networking II, and BIOS-based NPU overclocking
DDR5 Memory Support – Up to 9066 MT/s, 256GB max with AEMP III
Next-Gen Expansion – PCIe 5.0 x16 + PCIe 4.0 x16
Thunderbolt™ 4 & USB 20Gbps – Blazing-fast transfer and connectivity
WiFi 7 + Bluetooth 5.4 – Peak wireless performance for gaming/streaming
Aura Sync Lighting – Customizable RGB lighting across components
Advanced Cooling Layout – 6 fan headers, AIO pump, thermal sensor
Asynchronous Clock Design – Independent BCLK for enhanced tuning
ROG Premium Features – Start button, BIOS FlashBack™, Clear CMOS
| Category | Details |
|---|---|
| Brand | ASUS |
| Model | ROG STRIX B860-F Gaming WiFi |
| Form Factor | ATX |
| CPU Socket | LGA1851 |
| CPU Support | Intel® Core™ Ultra (Series 2) |
| Chipset | Intel® B860 |
| Memory Support | 4 x DDR5 DIMMs (dual channel) |
| Max Memory | 256 GB |
| Memory Speed | Up to 9066 MT/s (with AEMP III and DIMM Fit) |
| Memory Features | XMP, AEMP III, DIMM Fit, On-Die ECC |
| Graphics Ports | 1 x DisplayPort, 1 x HDMI, 1 x Thunderbolt™ 4 |
| Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 |
| Wireless Networking | WiFi 7, Bluetooth® 5.4 |
| Ethernet | Intel® 2.5Gb Ethernet |
| Back Panel I/O | 1 x Thunderbolt™ 4 (USB-C), 1 x USB 20Gbps (USB-C), |
| 1 x USB 10Gbps (Type-A), 6 x USB 5Gbps (Type-A), | |
| 1 x HDMI, 1 x DisplayPort, 2 x Audio jacks, S/PDIF, | |
| BIOS FlashBack™, Clear CMOS, Wi-Fi antenna | |
| Internal Storage | 4 x M.2 slots (Key M), 4 x SATA 6Gb/s ports |
| USB Headers | 1 x USB 10Gbps (Type-C), 1 x USB 5Gbps (2 ports), |
| 2 x USB 2.0 headers (3 additional ports) | |
| Cooling Headers | 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 4 x Chassis Fan |
| Other Headers | 3 x Gen2 RGB, Thunderbolt (USB4), Audio, TPM, Thermal Sensor |
| Overclocking | NPU Boost, Asynchronous Clock Generator |
| Audio | 2 x Audio jacks, 1 x Optical S/PDIF out |
| Buttons | Start, Clear CMOS, BIOS FlashBack™ |
| Lighting | Aura Sync (Addressable Gen2 headers) |
| OS Support | Windows 11, Windows 10 (64-bit) |
