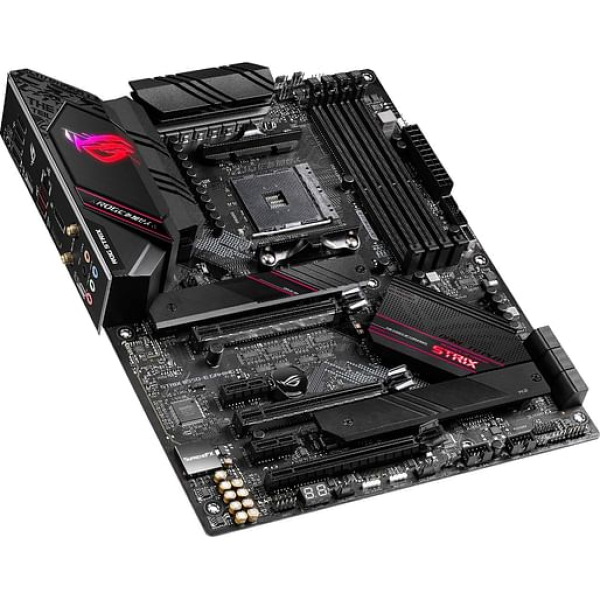

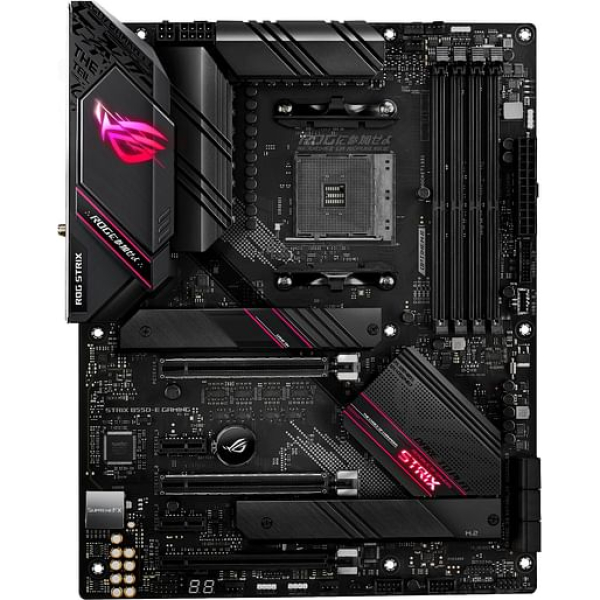

Asus ROG Strix B550-E AM4 3rd Gen Ryzen ATX Gaming Motherboard

Sku: ROG STRIX B550-E GAMING

Brand: Asus

Category: AMD Boards

$467.50 $489.01 4% OFF

Shipping Information

Availability: On Order

On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.

Shipping Calculator

Find

ASUS ROG STRIX B550-E GAMING AM4 ATX Motherboard, Memory Support 4x DIMM DDR4 Slots (128GB, 4400 MHz O.C), Expansion Slots 2x PCIe 4.0 x16 (x16 or dual x8), 1x PCIe 3.0 x16 (x4 Mode) & 2x PCIe 3.0 x1, Storage Support 2x M.2 Slot & 6x SATA 6Gb/s Connectors, Network Intel® Wi-Fi 6 AX200, Bluetooth 5.1 & Intel® I225-V 2.5Gb Ethernet, ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A, Rear USB Ports 3x USB 3.2 Gen 2 (1x USB-C), 4x USB 2.0 & 1x USB 2.0. ROG Strix B550-E Gaming is PCIe® 4.0-ready and provides the latest connectivity options for supersmooth networking and blisteringly fast file tra

Ask more about this product

We Accept

Description

Manufacture # Asus | Model # ROG STRIX B550-E GAMING

ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe^® 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle 3^rd Gen AMD Ryzen™ CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-E Gaming gives you a head start on your dream build.

Features:

Asus Amd B550 (ryzen Am4) Atx Mb Dual M2 Pcie 4.0 2.5gb Lan Wifi 6 Bt 5.1 2x Sli 3x Crossfirex Usb 3.2 Gen2 A&c Auras (ROG STRIX B550-E GAMING)
AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Best gaming connectivity: PCIe® 4.0-ready, dual M.2, USB 3.2 Gen 2 Type-C® plus HDMI™ 2.1 and DisplayPort 1.2 output
Smooth networking: Onboard WiFi 6 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
Robust power solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds
DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-Code and FlexKey
Unmatched personalisation: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB header and addressable Gen 2 RGB header
Industry-leading Gaming Audio: Audio USB Type-C®, AI Noise cancellation, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive audio

Overview:

Chipset: AMD B550
3rd Gen AMD Ryzen™ Processors
Intel® I225-V 2.5Gb Ethernet
Intel® Wi-Fi 6 AX200
Bluetooth v5.1

Manufacturer Warranty: 03 Years Limited Warranty

General

Chipset

AMD B550

Socket

AM4
AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Unique Features

Aura Sync
ASUS Q-Design
ASUS Thermal Solution
ASUS EZ DIY

Memory

RAM Capacity

upto 128GB (32GB each)

DIMM Slots

RAM Frequency Supports

DDR4 5100(O.C) / 4800(O.C.) / 4600(O.C) / 4400(O.C) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3600(O.C.) / 3466(O.C.) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 MHz Un-buffered Memory

Onboard Graphics

With HDMI

1 x HDMI 2.1(4K@60HZ)

With DisplayPort

1 x DisplayPort 1.2

Wireless Communication

Wi-Fi

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Intel Wi-Fi 6 AX200
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160

Bluetooth

5.1

Slots And Ports

Expansion Slots

1 x PCIe 3.0 x16 (x4 mode)
2 x PCIe 3.0 x1
2 x PCIe 4.0 x16 (x16 or dual x8)
2 x PCIe 3.0 x16 (x16 or dual x8)
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

Internal I/O Connectors

1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x Thunderbolt header(s)
1 x Q-Code
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x AAFP connector
2 x Aura RGB Strip Header(s)
2 x Addressable Gen 2 header(s)
1 x Thermal sensor connector(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
6 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x System panel(s)
1 x Clear CMOS jumper(s)

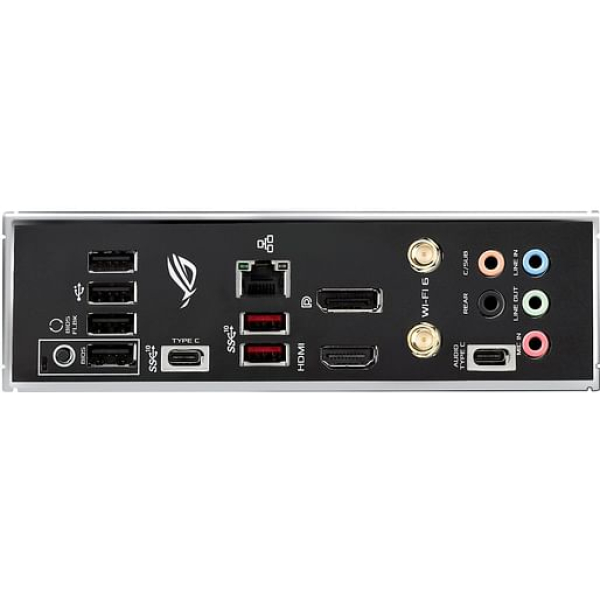

Back Panel Connectors

3 x USB 3.2 Gen 2 (2 x Type-A+1 x USB Type-C)
5 x USB 2.0 (1 for audio USB Type-C)
1 x BIOS FlashBack Button(s)
1 x Intel I225-V 2.5Gb Ethernet
ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)
1 x DisplayPort
1 x HDMI
5 x Audio jack(s)
