Product Type: Gaming Motherboard, Model: ROG CROSSHAIR X870E EXTREME, Chipset: AMD X870E, Socket: AM5, Processors: AMD Ryzen 9000/8000/7000 Series, Memory: DDR5 (Max. 256GB), PCIe: 2x PCIe 5.0 x16, Storage: 5x M.2 Slots (3x Gen 5, 2x Gen 4), LAN: 10Gb + 5Gb Ethernet, Wireless: Wi-Fi 7 / BT 5.4, Form Factor: E-ATX, Display: Full Color 5" LCD.
We Accept
Manufacture # ASUS | Model # ROG CROSSHAIR X870E EXTREME

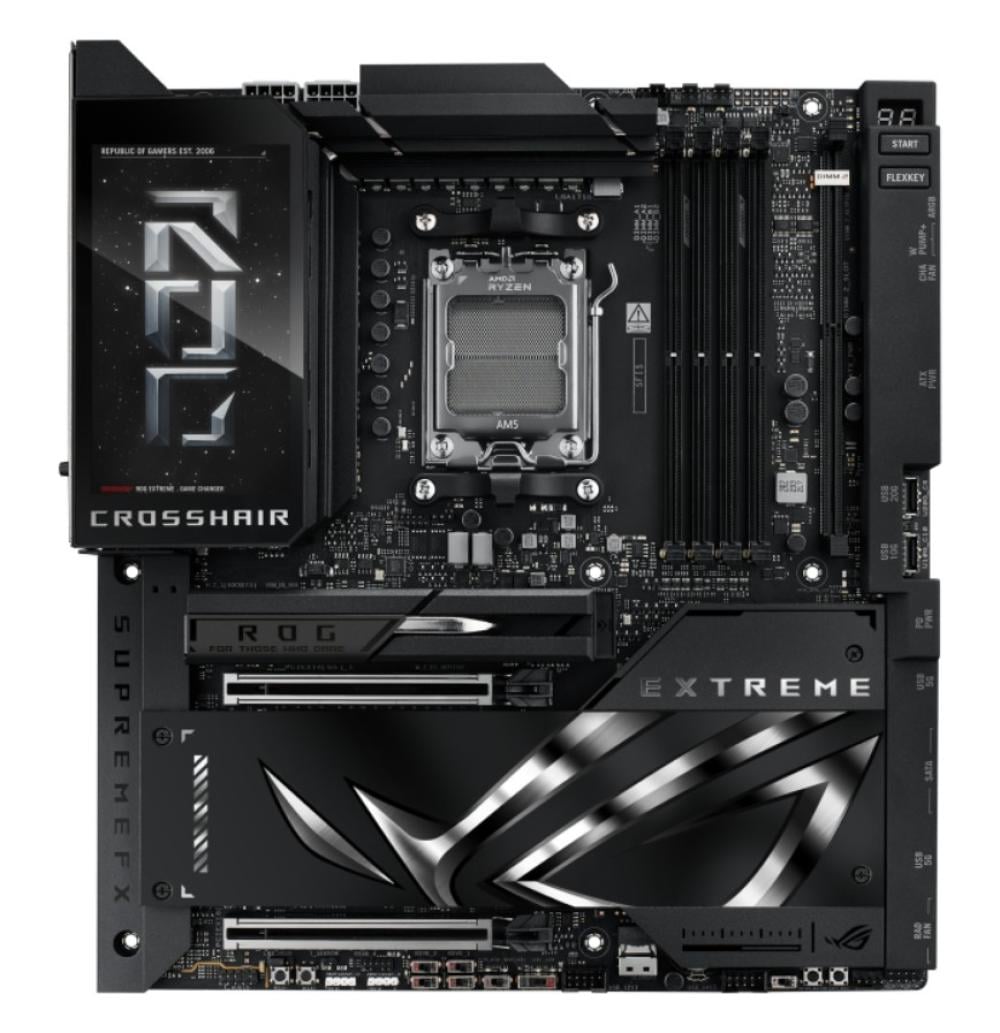

The ROG Crosshair X870E Extreme is the flagship AMD Ryzen™ 9000 series motherboard, designed for the most discerning users. It provides the ultimate foundation for AM5 CPUs, DDR5 memory, and PCIe® 5.0 components to ensure maximum performance and future-readiness. Its comprehensive connectivity includes USB4®, and the integrated 5-inch LCD offers a unique way to monitor system performance or add a touch of personalized style.
Key Features:
Manufacturer Warranty: 01 Years Limited Warranty
| Product Family | ASUS ROG Crosshair |
| Model Number | ROG CROSSHAIR X870E EXTREME |
| Product Type | E-ATX Gaming Motherboard |
| CPU Socket | AMD AM5 |
| Chipset | AMD X870E |
| Supported Processors | AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors |
| Memory Slots | 4 x DIMM (Dual Channel) |
| Memory Type | DDR5 (Max. 256GB) |
| Max Memory Speed (OC) | Up to 8200+ MT/s (Ryzen 9000) / 9000+ MT/s (Ryzen 8000) |
| PCIe x16 Slots | 2 x PCIe 5.0 x16 Slots (support x16 or x8/x8 modes) |
| M.2 Storage Slots | 5 Total (3 x Onboard PCIe 5.0 x4, 2 x PCIe 4.0 x4 via ROG Q-DIMM.2 Card) |
| SATA Ports | 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Marvell AQtion 10Gb Ethernet, 1 x Realtek 5Gb Ethernet |
| Wireless Connectivity | Wi-Fi 7 (802.11be), Bluetooth 5.4 |
| Rear I/O Ports (Key) | 2 x USB4® (40Gbps) Type-C, 10 x USB 10Gbps, HDMI, Wi-Fi 7 Antenna Connectors |
| Front Panel Headers (Key) | 1 x USB 20Gbps Type-C (QC 4+ up to 60W), 1 x USB 10Gbps Type-C |
| Audio | ROG SupremeFX 7.1 ALC4082 CODEC with ESS® ES9219 QUAD DAC, Dolby Atmos |
| Form Factor | Extended ATX (E-ATX) |
| Dimensions (W x L) | 12.0 x 10.9 in. (30.5 x 27.7 cm) |
| Unique Features | Full Color 5” LCD Display, 20+2+2 Power Stages, AI Overclocking/Cooling, ROG Q-DIMM.2 Card |
