Sku: PRO WS Z890-ACE SE
Brand: Asus
Category: Intel Boards
Availability: On Order
On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.
Shipping Calculator
Find
ASUS Pro WS Z890-ACE SE is a professional ATX workstation motherboard built on the Intel Z890 chipset, supporting Intel® Core™ Ultra 9/7/5 (Series 2) processors. Engineered for AI PCs, creative workloads, and IT management, it features robust power delivery, dual Ethernet, PCIe® 5.0, Thunderbolt™ 4, onboard BMC, and server-grade reliability.
We Accept
Manufacture: ASUS | Model: PRO WS Z890-ACE SE

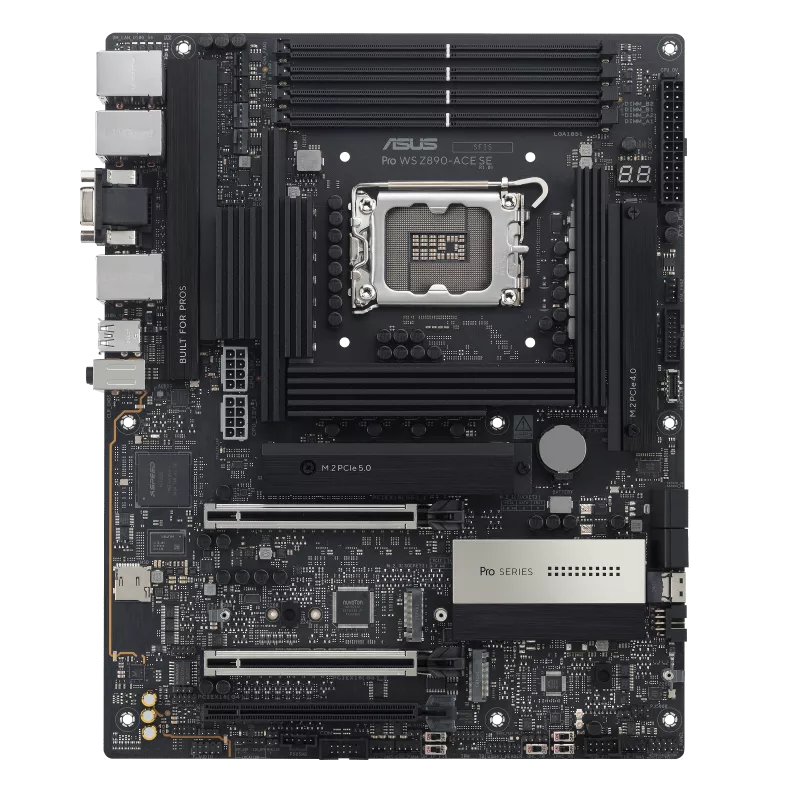

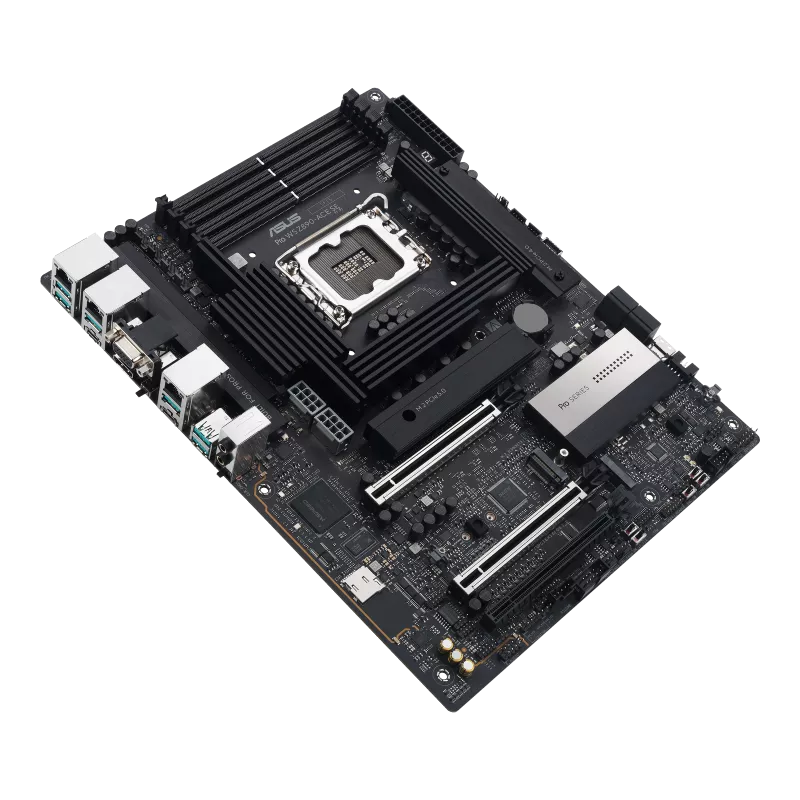

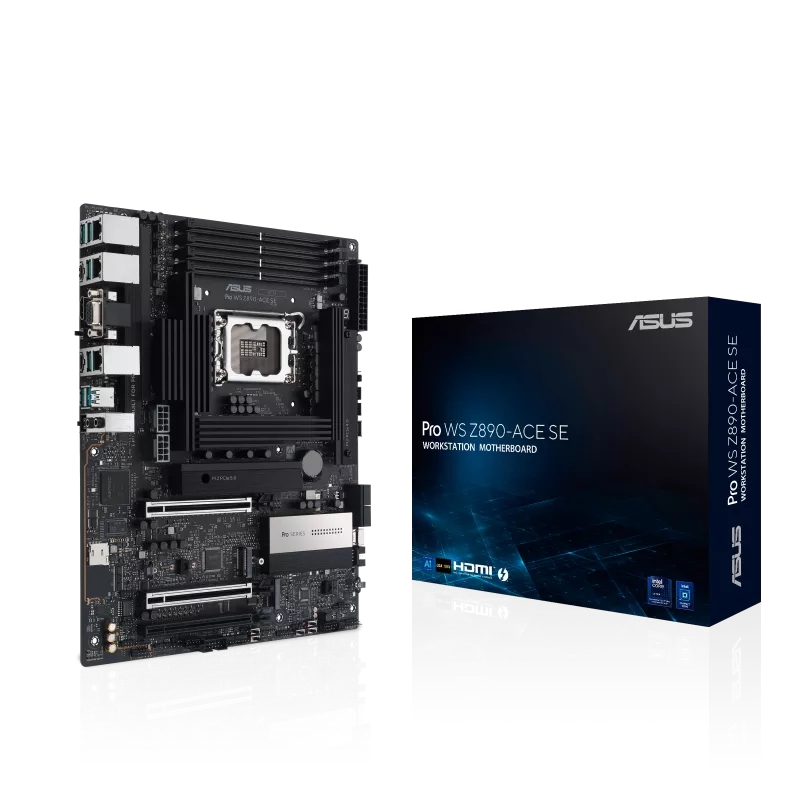

The ASUS Pro WS Z890-ACE SE motherboard is purpose-built for advanced AI workloads, content creation, deep learning, and IT administration. Supporting Intel® Core™ Ultra (Series 2) processors on the LGA1851 socket, it delivers powerful performance via a 16+1+2+2 power stage configuration and an eight-layer PCB. This workstation-class board features dual PCIe 5.0 x16 slots, four M.2 slots (one PCIe 5.0), 10Gb & 2.5Gb LAN, and Thunderbolt™ 4 support. Designed for maximum stability and customization, it integrates ASUS-exclusive tools like AI Overclocking, AI Cooling II, and DIMM Fit Pro, plus a remote management-ready BMC with ASUS Control Center Express for enterprise-level control. The Pro WS Z890-ACE SE ensures 24/7 reliability under rigorous conditions, making it the ideal backbone for next-generation AI PCs and professional workstations.
Socket & Chipset: Intel LGA1851, Z890 chipset
Processor Support: Intel® Core™ Ultra 9/7/5 (Series 2)
Power Delivery: 16(90A)+1(90A)+2(90A)+2(80A) teamed power stages
Memory Support: DDR5 up to 9066+ MHz (OC), ECC & non-ECC, with AEMP III, DIMM Fit Pro
Expansion:
2 × PCIe 5.0 x16 (SafeSlot, Q-Release Slim)
4 × M.2 slots (1 × PCIe 5.0 x4, 3 × PCIe 4.0 x4, RAID support)
Networking:
1 × 10Gb Ethernet
1 × 2.5Gb Ethernet
Connectivity:
1 × Thunderbolt™ 4 (40 Gbps)
USB 3.2 Gen 2x2 Type-C front-panel header
AI Features:
AI Overclocking
AI Cooling II
AI Advisor
NPU Boost (up to 24% AI performance boost)
Remote Management:
Onboard BMC (ASPEED AST2600)
ASUS Control Center Express (IPMI features, USB port lock, registry lock, software blacklist)
Thermal:
Active chipset cooling
8-layer PCB for heat dissipation
DIY Friendly:
PCIe Slot Q-Release Slim
M.2 Q-Latch
ASUS DriverHub, BIOS FlashBack™, Q-Connector
Durability:
24/7 reliability at 45°C / 80% humidity
High-grade chokes and capacitors
Digi+ VRM
ProCool II connectors
| Category | Details |
|---|---|
| Chipset | Intel Z890 |
| Socket | LGA1851 |
| CPU Support | Intel® Core™ Ultra 9/7/5 (Series 2) |
| Form Factor | ATX |
| Power Delivery | 16+1+2+2 Power Stages (90A + 80A) |
| Memory | 4 × DDR5 slots, up to 9066+ MHz (OC), ECC/Non-ECC UDIMM |
| Memory Enhancements | AEMP III, DIMM Fit / DIMM Fit Pro |
| PCIe Slots | 2 × PCIe 5.0 x16 |
| M.2 Slots | 1 × PCIe 5.0 x4, 3 × PCIe 4.0 x4 (RAID 0/1/5 supported) |
| SATA Ports | 4 × SATA 6Gb/s |
| Ethernet | 1 × 10Gb LAN, 1 × 2.5Gb LAN |
| Thunderbolt™ 4 | 1 × USB-C port (40 Gbps, display/data) |
| USB Ports (Front) | 1 × USB 3.2 Gen 2x2 Type-C (20Gbps) header |
| USB Ports (Rear) | Multiple USB 3.2 Gen 2/1 ports |
| AI Tools | AI Overclocking, AI Cooling II, AI Advisor, NPU Boost |
| Remote Management | Onboard BMC (ASPEED AST2600), ASUS Control Center Express |
| DIY Features | PCIe Slot Q-Release Slim, M.2 Q-Latch, ASUS DriverHub, Q-Connector |
| Thermal | Active chipset heatsink, 8-layer PCB |
| Reliability | 168 hr burn-in at 45°C & 80% humidity |
