Sku: PRO WS W680M-ACE SE
Brand: Asus
Category: Intel Boards
Availability: On Order
On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.
Shipping Calculator
Find

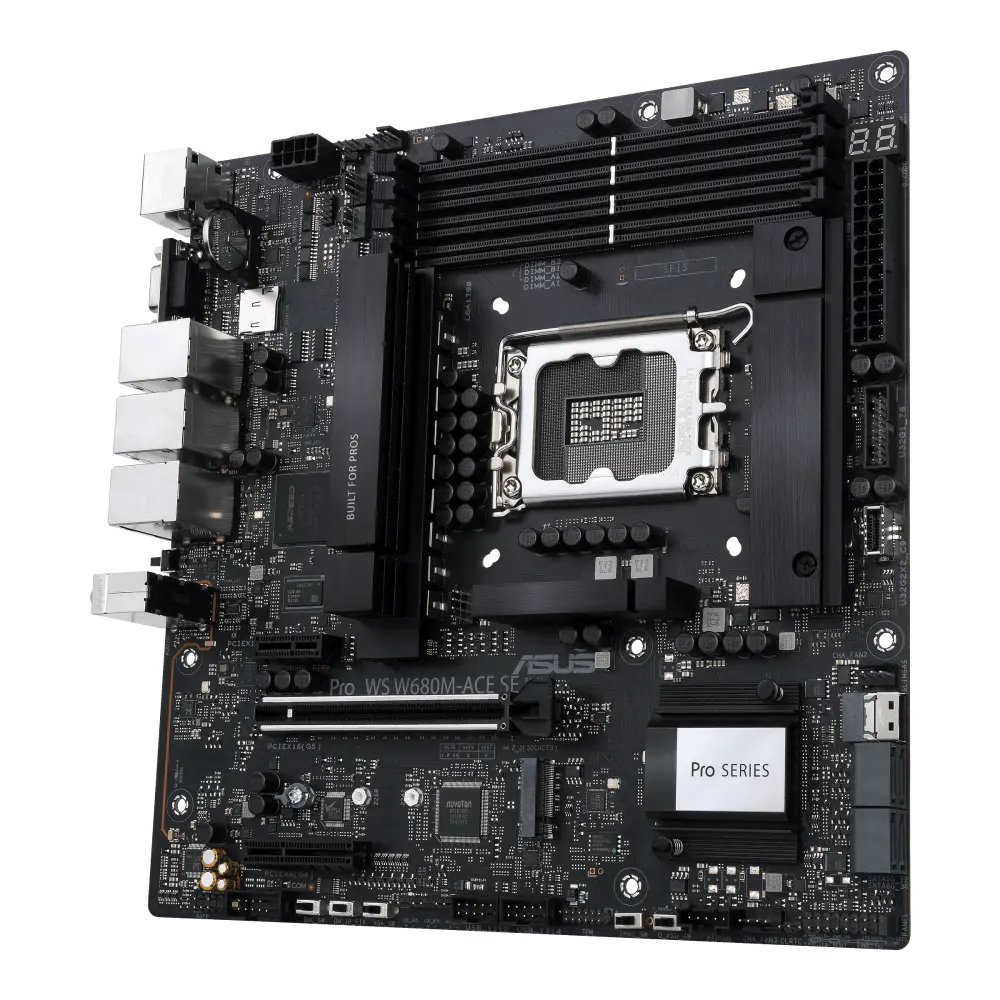

Product Type: Workstation Motherboard, Model: ASUS Pro WS W680M-ACE SE, Chipset: Intel W680, CPU Socket: LGA 1700, Form Factor: Micro-ATX, Memory: DDR5 (with ECC support), Special Features: BMC Remote Management, Dual 2.5G LAN
We Accept
Manufacture # ASUS | Model # PRO WS W680M-ACE SE
ASUS Pro Workstation motherboards are designed for professionals in AI training, deep learning, animation, 3D rendering or media production. Featuring expandable graphics, extensive storage, impressive connectivity and exceptional overall performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals. Each motherboard includes centralized management software, so they're also an efficient and cost-effective option for IT administrators.
Key Features:
Manufacturer Warranty: 01 Years Limited Warranty
| Product Family | ASUS Pro WS |
| Model Name | PRO WS W680M-ACE SE |
| Product Type | Workstation Motherboard |
| Chipset | Intel W680 |
| CPU Socket | LGA 1700 |
| Form Factor | Micro-ATX (mATX) |
| Memory | 4 x DDR5 DIMM slots, Max 192GB, Supports ECC/Non-ECC |
| Storage | 2 x M.2 PCIe 4.0 x4 slots, 4 x SATA 6Gb/s ports, 1 x SlimSAS port |
| Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4, 1 x PCIe 3.0 x1 |
| Graphics Output | 1 x HDMI, 1 x DisplayPort, 1 x VGA (for BMC) |
| Audio | Realtek 7.1 Surround Sound HD Audio |
| LAN | 2 x Intel 2.5GbE, 1 x Realtek 1GbE (for BMC) |
| Rear USB Ports | 2 x USB 3.2 Gen 2 (Type-A & Type-C), 4 x USB 3.2 Gen 1 Type-A |
| Special Features | Integrated BMC (Baseboard Management Controller), ASUS Control Center Express, 24/7 Reliability, ASUS SafeSlot/SafeDIMM |
