Sku: PRIME X870-P-WIFI-CSM
Brand: Asus
Category: AMD Boards
Availability: In Stock
Ships in 1-2 days.
Pickup from Seven Hills in 1-2 days.
Shipping Calculator
Find
Product Type: Motherboard, Model: ASUS PRIME X870-P WIFI-CSM, Socket: AMD AM5, Chipset: AMD X870, Form Factor: ATX, Memory: 4 x DDR5 DIMM (Max. 192GB, up to 8000+ MT/s OC), PCIe: 1 x PCIe 5.0 x16 (for GPU), Storage: 4 x M.2 (1 x PCIe 5.0 x4) + 2 x SATA 6Gb/s, Ethernet: 2.5Gb, Wireless: Wi-Fi 7, Rear USB: 2x USB4 (40G Type-C), 1x 10G Type-A, 3x 5G Type-A, 4x 2.0 Type-A
We Accept
Manufacture # ASUS | Model # PRIME X870-P-WIFI-CSM

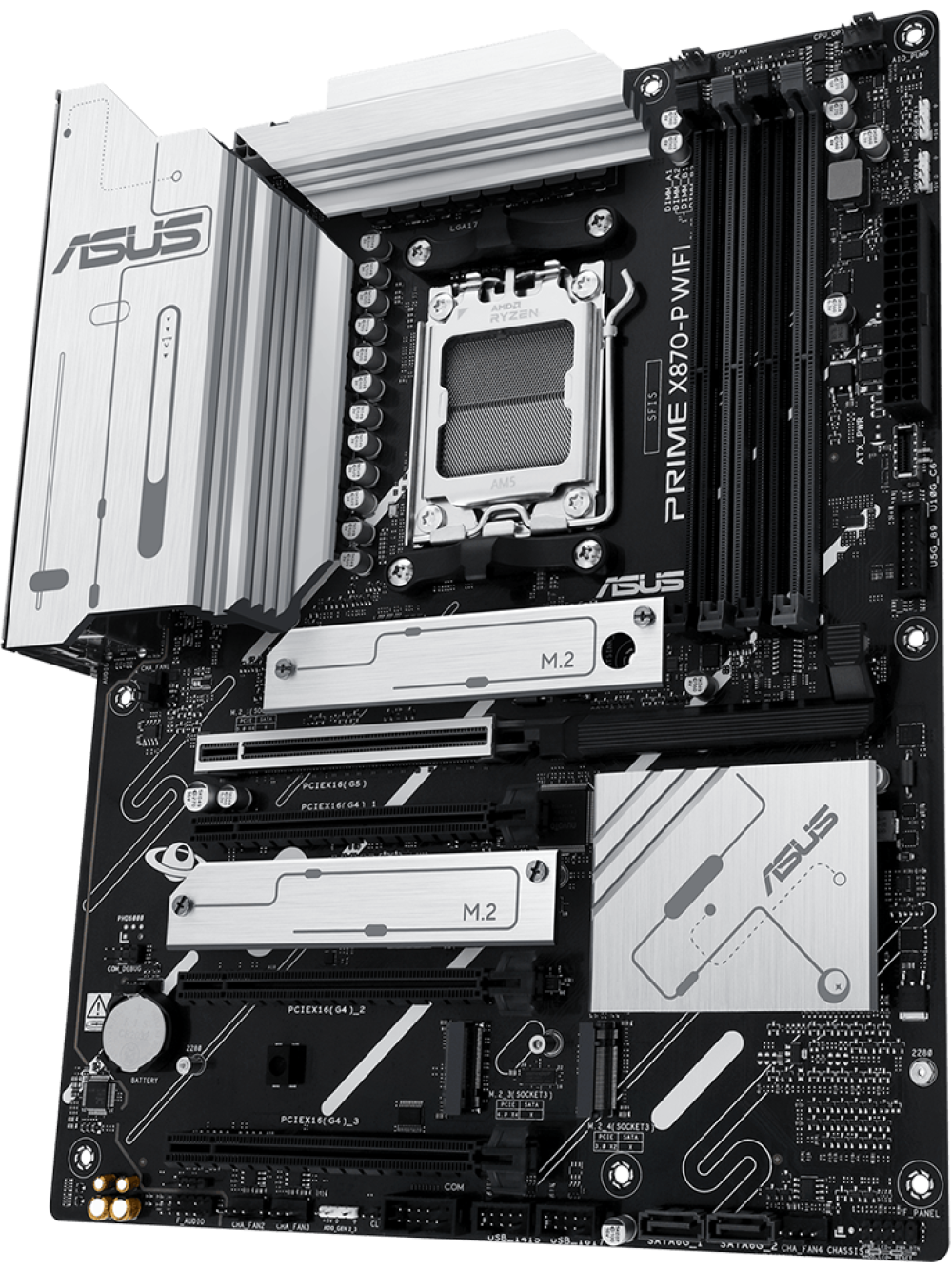

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME X870-P WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Key Features:
Manufacturer Warranty: 01 Years Limited Warranty
| Product Family | ASUS PRIME |
| Model Number | PRIME X870-P WIFI-CSM |
| Product Type | ATX Motherboard |
| CPU Socket | AMD Socket AM5 |
| CPU Support | AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset | AMD X870 |
| Memory Slots | 4 x DIMM, Dual Channel |
| Memory Type | DDR5, ECC and Non-ECC, Un-buffered |
| Max Memory | Max. 192GB, up to 8000+ MT/s (OC) |
| PCIe (Primary GPU) | 1 x PCIe 5.0 x16 slot (x16 mode) |
| PCIe (Other) | 3 x PCIe 4.0 x16 slots (support x1 mode) |
| M.2 Slots (Total) | 4 x M.2 slots (Key M) |
| M.2_1 (CPU) | Type 2280, PCIe 5.0 x4 mode (Ryzen 9000/7000) or PCIe 4.0 x4 mode (Ryzen 8000) |
| M.2 (Chipset) | M.2_2 (PCIe 4.0 x4), M.2_3 (PCIe 4.0 x4), M.2_4 (PCIe 3.0 x2) |
| SATA Ports | 2 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet (ASUS LANGuard) |
| Wireless Connectivity | Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz band |
| Bluetooth | Bluetooth (Version may vary) |
| Rear I/O (USB) | 2 x USB4® (40Gbps Type-C®), 1 x USB 10Gbps Type-A, 3 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A |
| Rear I/O (Video) | 1 x HDMI™ port, 2 x USB4® (supports Type-C® display outputs) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Special Features | ASUS Corporate Stable Model (CSM), PCIe Slot Q-Release, M.2 Q-Latch, BIOS FlashBack™ |
