Sku: PRIME B850M-A WIFI-CSM
Brand: Asus
Category: AMD Boards
Availability: In Stock
Ships in 1-2 days.
Pickup from Seven Hills in 1-2 days.
Shipping Calculator
Find
Product Type: Motherboard, Model: PRIME B850M-A WIFI-CSM, Processor Socket: AMD AM5, Chipset: AMD B850, RAM: DDR5 (Max 256GB), Form Factor: Micro ATX, Primary PCIe: 1 x PCIe 5.0 x16, M.2 Slots: 3 (1x PCIe 5.0), LAN: 2.5Gb Ethernet, Wireless: Wi-Fi 6E/BT 5.3, Audio: 7.1 HD Audio, Feature: CSM
We Accept

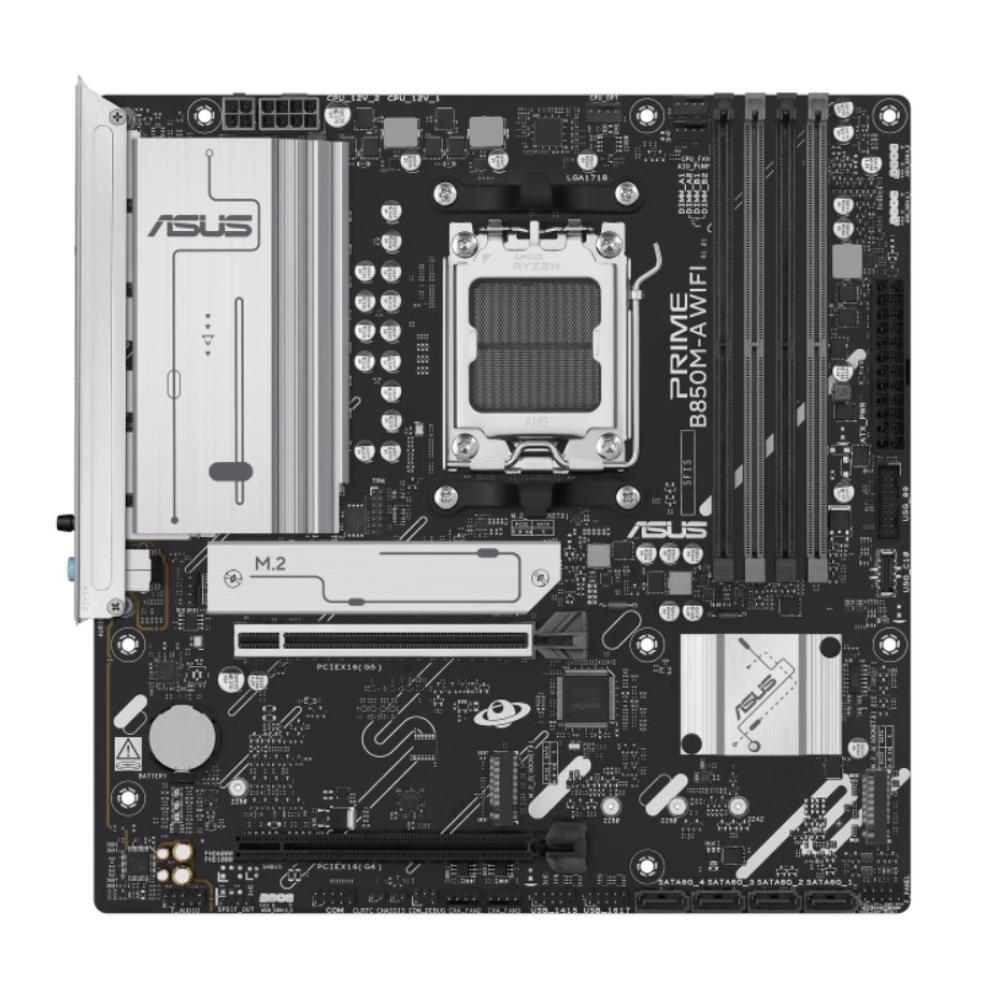

Manufacture # ASUS | Model # PRIME B850M-A WIFI-CSM
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B850M-A WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Key Features:
Manufacturer Warranty: 01 Years Limited Warranty
| Product Family | ASUS PRIME |
| Model Number | PRIME B850M-A WIFI-CSM |
| Product Type | Motherboard (Micro ATX) |
| Processor Socket | AMD Socket AM5 |
| Compatible Processors | AMD Ryzen™ 9000, 8000, & 7000 Series Desktop Processors |
| Chipset | AMD B850 |
| Memory Technology | DDR5 |
| Memory Slots | 4 x DIMM Slots (Dual Channel) |
| Max Memory | 256GB |
| Memory Speed (OC) | Up to 8000+ MT/s (OC) |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (x16 mode) |
| 1 x PCIe 4.0 x16 slot (x1 mode via chipset) | |
| Storage (M.2) | 3 x M.2 slots total |
| M.2_1 supports PCIe 5.0 x4 mode | |
| M.2_2 & M.2_3 support PCIe 4.0 x4 mode | |
| Storage (SATA) | 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless Connectivity | Wi-Fi 6E (802.11ax), Bluetooth v5.3 |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Internal I/O (USB) | 1 x USB 5Gbps connector (supports USB Type-C®) |
| 1 x USB 5Gbps header (supports 2 addt'l USB 5Gbps ports) | |
| 2 x USB 2.0 headers (supports 4 addt'l USB 2.0 ports) | |
| Rear I/O Ports | 2 x USB 10Gbps Type-A ports |
| 2 x USB 5Gbps Type-A ports | |
| 4 x USB 2.0 Type-A ports | |
| Video Outputs | 2 x DisplayPort, 1 x HDMI™ port |
| Other Rear I/O | 1 x Wi-Fi Module, 1 x 2.5Gb Ethernet, 3 x Audio jacks, 1 x BIOS FlashBack™ Button |
| Form Factor | Micro ATX (9.6 inch x 9.6 inch) |
| Special Features | ASUS Corporate Stable Model (CSM), ASUS Enhanced Memory Profile (AEMP), Aura Sync RGB |
