Sku: PRIME B850-PLUS WIFI-CSM
Brand: Asus
Category: AMD Boards
Availability: On Order
On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.
Shipping Calculator
Find
Product Type: ATX Motherboard (CSM), Model: PRIME B850-PLUS WIFI-CSM, CPU Socket: AM5, Chipset: AMD B850, Memory: 4 x DDR5 DIMM (Max 256GB, up to 8000+ MT/s OC), PCIe: 1 x PCIe 5.0 x16, Storage: 1 x M.2 PCIe 5.0 x4, 2 x M.2 PCIe 4.0, 4 x SATA 6Gb/s, LAN: Realtek 2.5Gb Ethernet, Wireless: Wi-Fi 6E, Bluetooth 5.3, Form Factor: ATX
We Accept
Manufacture # ASUS | Model # PRIME B850-PLUS WIFI-CSM

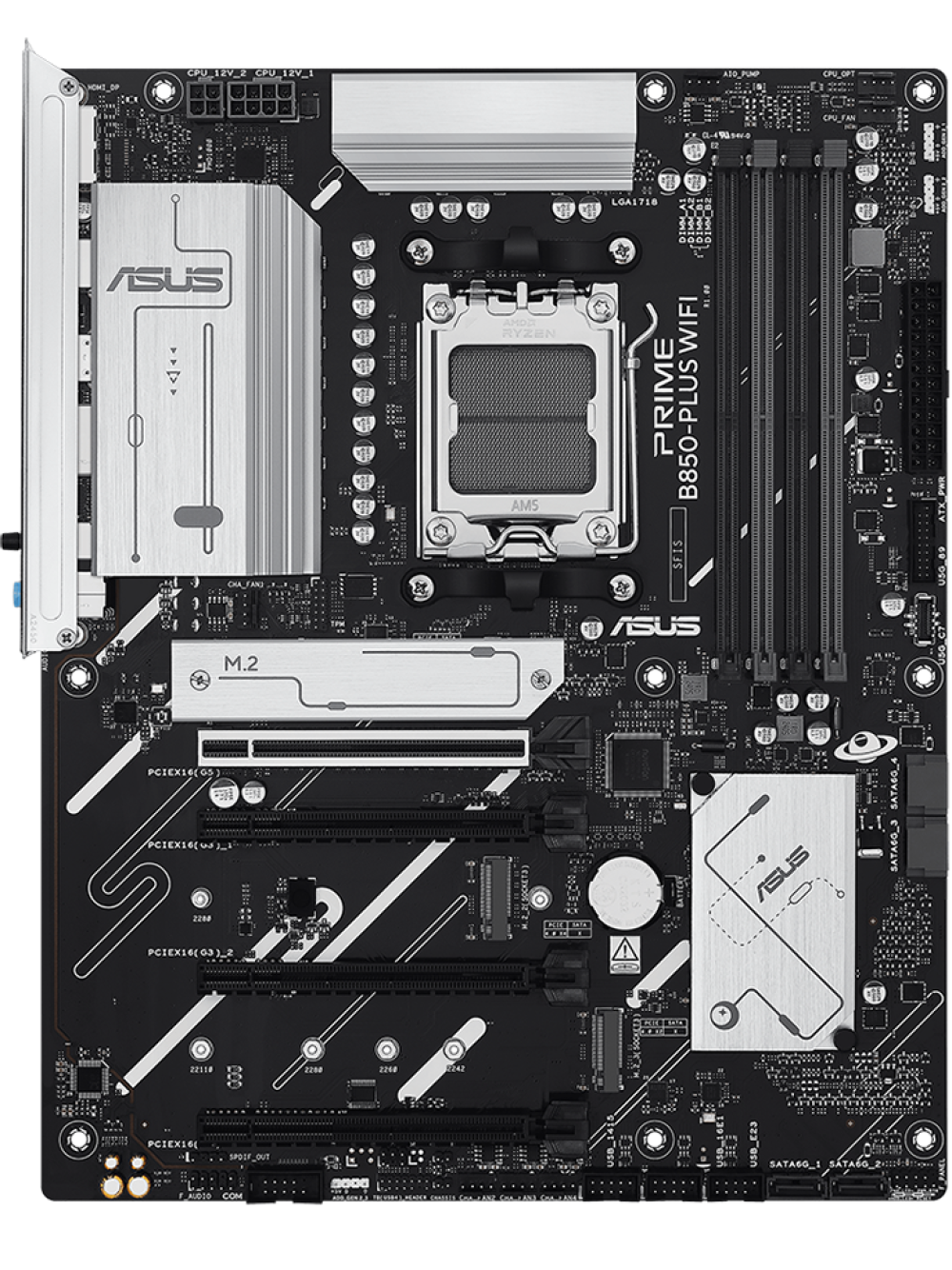

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B850-PLUS WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Key Features:
Manufacturer Warranty: 01 Years Limited Warranty
| Product Family | ASUS Prime |
| Model Number | PRIME B850-PLUS WIFI-CSM |
| Product Type | ATX Motherboard (CSM) |
| CPU Socket | AMD Socket AM5 |
| Chipset | AMD B850 |
| Memory Slots | 4 x DIMM (Dual Channel) |
| Memory Type | DDR5 (Supports up to 8000+ MT/s OC) |
| Max Memory Capacity | 256GB |
| PCIe (Primary Slot) | 1 x PCIe 5.0 x16 SafeSlot (x16 mode) |
| PCIe (Other Slots) | 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 3.0 x16 (x1 mode) |
| M.2 Slots (Total) | 3 |
| M.2 Slot 1 (Primary) | PCIe 5.0 x4 (Type 2280) |
| M.2 Slot 2 | PCIe 4.0 x4 (Type 2280) |
| M.2 Slot 3 | PCIe 4.0 x2 (Type 2242/2260/2280/22110) |
| SATA Ports | 4 x SATA 6Gb/s |
| Ethernet | Realtek 2.5Gb Ethernet |
| Wireless Connectivity | Wi-Fi 6E (802.11ax), Bluetooth v5.3 |
| Rear I/O (Key Ports) | 1 x USB 10Gbps Type-C, 3 x USB 10Gbps Type-A, 2 x USB 5Gbps Type-A, 2 x USB 2.0, DisplayPort, HDMI, 2.5Gb Ethernet, 3 x Audio jacks, BIOS FlashBack™ Button |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
| Power Design | 8+2+1 Phase Digital Power Design |
| Special Feature | ASUS Corporate Stable Model (CSM) |
| RGB Sync | Aura Sync |
