Product Type: Micro-ATX Motherboard, Model: ASUS PRIME B650M-A AX6, CPU Socket: AMD AM5, Chipset: AMD B650, Memory: 4 x DDR5 DIMM slots (Max 192GB, up to 7600+(OC) MHz), Storage: 3 x M.2 Slots (1x PCIe 5.0 x4, 2x PCIe 4.0), 4 x SATA 6Gb/s Ports, LAN: Realtek 1Gb Ethernet, Wireless: Wi-Fi 6 (802.11ax) & Bluetooth v5.3
We Accept
Manufacture # ASUS | Model # PRIME B650M-A AX6

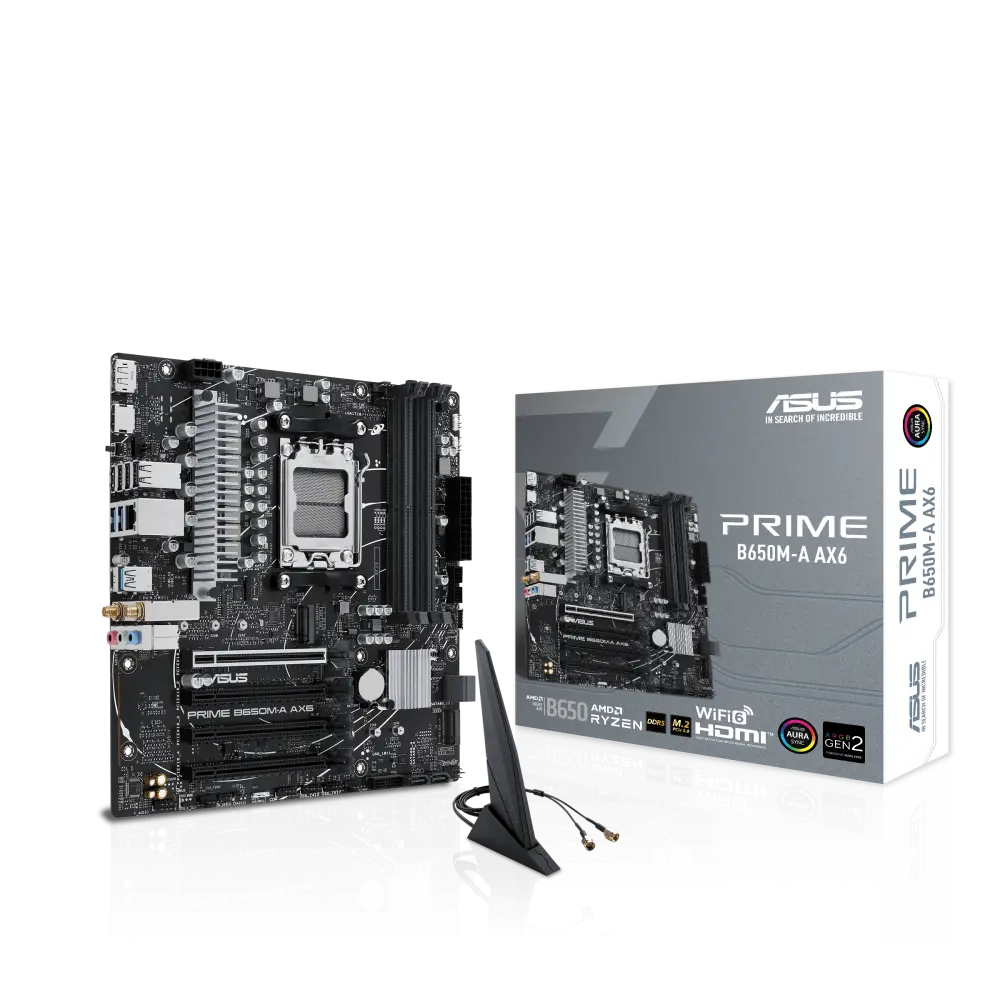

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-A AX6 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.
Key Features:
Manufacturer Warranty: 01 Years Limited Warranty
| Product Family | ASUS PRIME |
| Model Number | PRIME B650M-A AX6 |
| Product Type | Micro-ATX Motherboard |
| CPU Socket | AMD Socket AM5 |
| Chipset | AMD B650 |
| CPU Support | AMD Ryzen™ 9000/8000/7000 Series Desktop Processors |
| Memory Slots | 4 x DDR5 DIMM, Dual Channel |
| Max Memory | 192GB |
| Max Memory Speed (OC) | 7600+(OC) MHz |
| Primary PCIe Slot | 1 x PCIe 4.0 x16 slot (supports x16 mode) |
| Additional PCIe Slots | 3 x PCIe 4.0 x16 slots (support x1 mode) |
| M.2 Slots (Total) | 3 |
| M.2_1 Slot | Type 2242/2260/2280 (PCIe 5.0 x4 mode for Ryzen 7000/9000) |
| M.2_2 Slot | Type 2242/2260/2280 (PCIe 4.0 x4 mode) |
| M.2_3 Slot | Type 2242/2260/2280 (PCIe 4.0 x2 mode) |
| SATA Ports | 4 x SATA 6Gb/s ports |
| Onboard Graphics Output | 1 x DisplayPort, 1 x HDMI™ port |
| Ethernet | Realtek 1Gb Ethernet |
| Wireless & Bluetooth | Wi-Fi 6 (802.11ax), Bluetooth v5.3 |
| Rear USB Ports | 2 x USB 10Gbps (1x Type-A + 1x Type-C®), 2 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A |
| Front Panel USB Headers | 1 x USB 5Gbps connector (Type-C® support), 2 x USB 5Gbps headers (4 ports), 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Special Features | BIOS FlashBack™, Two-Way AI Noise Cancelation, Aura Sync |
