Sku: PRIME B650EM-A WIFI
Brand: Asus
Category: AMD Boards
Availability: On Order
On Order - These items are sourced upon request and may take longer to deliver. We will confirm availability once your order is received, as some products may occasionally be discontinued or unavailable.
Shipping Calculator
Find
Product Type: Motherboard, Model: PRIME B650EM-A WIFI, Socket: AM5, Chipset: AMD B650, Form Factor: Micro-ATX, Memory: DDR5 (Max 256GB), PCIe: 1 x PCIe 5.0 x16, M.2: 3 Slots (1 x PCIe 5.0), LAN: Realtek 2.5Gb Ethernet, Wireless: Wi-Fi 6 / BT v5.4, Display: 2x DisplayPort / 1x HDMI
We Accept

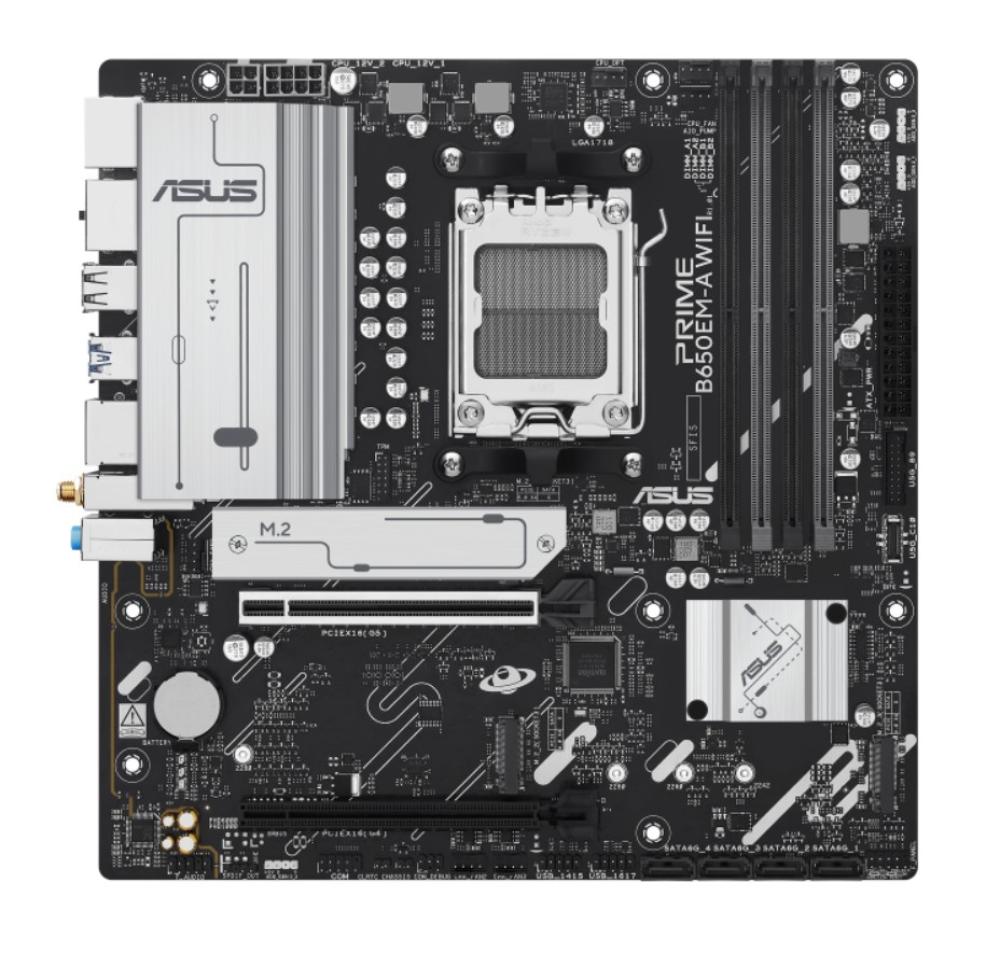

Manufacture # ASUS | Model # PRIME B650EM-A WIFI
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650EM-A WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.
Key Features:
Manufacturer Warranty: 01 Years Limited Warranty
| Product Family | ASUS PRIME |
| Model Number | PRIME B650EM-A WIFI |
| Product Type | Motherboard |
| Form Factor | Micro-ATX (mATX) |
| CPU Socket | AMD Socket AM5 |
| Chipset | AMD B650 |
| Memory Type | DDR5 (Dual Channel) |
| Memory Slots | 4 x DIMM |
| Max Memory Support | 256GB |
| Memory OC Speed | Up to 8000+ MT/s (OC) |
| PCIe Slot (Primary) | 1 x PCIe 5.0 x16 (for graphics card) |
| PCIe Slot (Secondary) | 1 x PCIe 4.0 x16 (supports x1 mode) |
| M.2 Slots (Total) | 3 |
| M.2 Slot 1 (Primary) | Type 2280, PCIe 5.0 x4 mode |
| M.2 Slots (Other) | 1 x PCIe 4.0 x4, 1 x PCIe 4.0 x4 (M.2_2 and M.2_3 slots) |
| SATA Ports | 4 x SATA 6Gb/s ports |
| Ethernet | Realtek 2.5Gb Ethernet |
| Wireless Connectivity | Wi-Fi 6 (802.11ax), Bluetooth v5.4 |
| Rear I/O (Video) | 2 x DisplayPort, 1 x HDMI™ |
| Rear I/O (USB) | 2 x USB 10Gbps Type-A, 2 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A |
| Front USB Headers | 1 x USB 5Gbps Type-C header, 1 x USB 5Gbps header (supports 2 ports), 2 x USB 2.0 headers (supports 4 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Special Features | BIOS FlashBack™, Aura Sync RGB Headers, SafeSlot |
| Dimensions | 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
