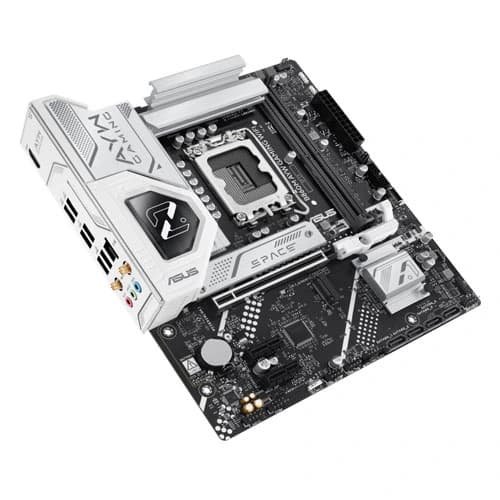

Asus H810M AYW GAMING WIFI-CSM LGA 1851 DDR5 Micro-ATX Motherboards

Sku: H810M AYW GAMING WIFI-CSM

Brand: Asus

Category: Intel Boards

$207.90

Shipping Information

Availability: In Stock

Ships in 1-3 days or pickup from Seven Hills in 3-5 days.

Shipping Calculator

The ASUS H810M AYW GAMING WIFI-CSM is a compact, powerful micro-ATX motherboard built for Intel® Core™ Ultra Series 2 processors. It supports DDR5 memory, PCIe 4.0, Wi-Fi 6, Bluetooth 5.3, dual M.2 slots, and advanced thermal and audio features—making it ideal for modern, efficient gaming and productivity builds.

-
+

100% Guarantee Safe Checkout

Thumbnail 3

Description

Manufacture: Asus | Model:  H810M AYW GAMING WIFI-CSM



Built to support the latest Intel® Core™ Ultra Series 2 processors on the LGA1851 socket, the ASUS H810M AYW GAMING WIFI-CSM motherboard delivers powerful performance in a space-efficient micro-ATX form factor. Powered by the Intel® H810 chipset, it features dual DDR5 DIMM slots with up to 128GB memory support, PCIe 4.0 slots, and dual M.2 for ultra-fast storage options.

Designed with future-ready features like Wi-Fi 6, Bluetooth® 5.3, and USB 10Gbps Type-A & Type-C ports, it ensures seamless connectivity and blazing transfer speeds. Its 7.1-channel Realtek HD Audio CODEC, enhanced by ASUS audio shielding and premium capacitors, offers immersive sound.

ASUS-exclusive technologies like 5X Protection III, Q-LED Core, and Fan Xpert 2+ provide enhanced durability, diagnostics, and thermal control. Whether you're building a gaming PC or a compact workstation, this board delivers the reliability and performance ASUS is known for.



Key Features

  • Supports Intel Core Ultra Series 2 processors (LGA1851 socket)

  • DDR5 Memory Support – Up to 128GB at speeds of 6400MT/s

  • Dual PCIe 4.0 Slots – 1x PCIe x16 & 1x PCIe x1 for GPU and expansion

  • Dual M.2 Slots + 4x SATA – PCIe 4.0 for high-speed SSDs

  • Wi-Fi 6 + Bluetooth® 5.3 – Seamless wireless connectivity

  • Multiple USB Options – Includes USB 10Gbps, USB 5Gbps, and Type-C®

  • 7.1 Surround Audio – With Realtek HD codec and audio shielding

  • Advanced Cooling – VRM heatsink & 3 fan headers

  • ASUS 5X Protection III – SafeSlot, Overvoltage protection, and more

  • Aura Sync RGB Support – With addressable Gen 2 headers

Category Details
Brand ASUS
Model H810M AYW GAMING WIFI-CSM
Form Factor micro-ATX (24.4 x 22.2 cm)
CPU Socket LGA1851
Chipset Intel® H810
CPU Support Intel® Core™ Ultra Series 2
Memory Slots 2 x DDR5 DIMM (dual channel)
Max Memory 128 GB DDR5 up to 6400MT/s
Graphics Output 1 x HDMI 2.1 (4K@60Hz), 1 x DisplayPort 1.4 (4K@60Hz)
Expansion Slots 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x1
Storage Interface 2 x M.2 (PCIe 4.0 x4 & x2), 4 x SATA 6Gb/s
Networking 1 x Intel® 1Gb Ethernet, ASUS LANGuard
Wi-Fi / Bluetooth Wi-Fi 6 (1x1, dual-band), Bluetooth® 5.3
Rear USB Ports 2 x USB 10Gbps (Type-A), 4 x USB 2.0
Front USB Headers USB Type-C®, USB 5Gbps header (2 ports), USB 2.0
Audio Realtek 7.1 HD Audio CODEC, Audio shielding
Cooling Headers 1 x CPU Fan, 2 x Chassis Fan
Internal Connectors 2 x M.2, 4 x SATA, USB headers, RGB, TPM, COM
Special Features ASUS 5X Protection III, Armoury Crate, Q-LED Core
Software Bundle Armoury Crate, ASUS CPU-Z, Norton 360 (Trial), WinRAR
BIOS UEFI AMI BIOS, 256 Mb (128+128) Flash ROM
Accessories Included 2 x SATA cables, Wi-Fi antenna, I/O shield, M.2 screws
OS Compatibility Windows 11 (22H2+), Windows 10 64-bit (21H2+)
Weight ~1.65 kg
