Manufacture: APC | Model: AP8958EU3

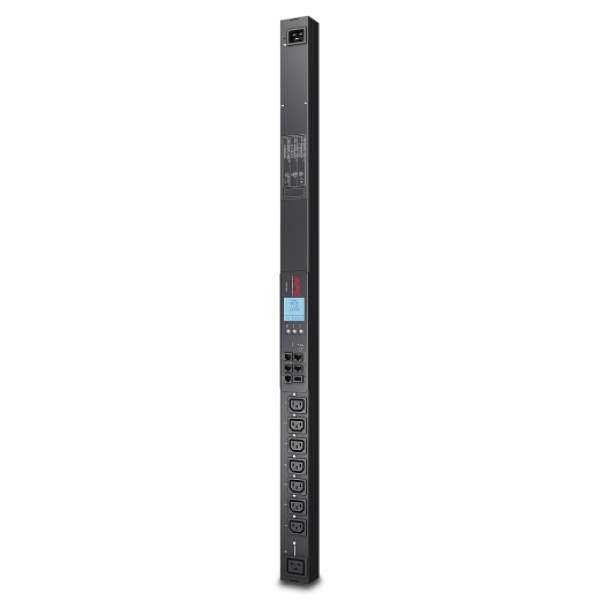

APC Switched Rack Power Distribution Units AP8958EU3 (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
| Lead Time | Usually in Stock |
| Colour | Black |
| Product or Component Type | PDU |
| PDU Type | Switched |
| Cord Length | 3.00 m |
| Number of Cables | 1 |
| Provided Equipment | Installation guide Locking input power cord Rack mounting brackets Serial configuration cable Safety guide |
| Input Voltage | 200 V / 208 V / 230 V |
| Output Voltage | 200 V / 208 V / 230 V |
| [In] Rated Current | 16 A |
| Max Line Current | 16 A |
| Input Current Limits | 16 A |
| Load Capacity | 3700 VA |
| Network Frequency | 50/60 Hz |
| Height | 98.8 cm |
| Width | 5.6 cm |
| Depth | 4.6 cm |
| Product Weight | 3.23 kg |
| Mounting Location | Side |
| Mounting Mode | Not Rack-Mountable |
| Rack Units | 0U |
| Mounting Position | Vertical |
| Input Plug Type | IEC 60309 16 A 2P + E |
| 7 x IEC 60320 C13 | 1 x IEC 60320 C19 |
| Ambient Air Temperature for Operation | -5 to 60 °C |
| Relative Humidity | 5 to 95% |
| Operating Altitude | 0 to 10,000 ft |
| Ambient Air Temperature for Storage | -25 to 65 °C |
| Storage Relative Humidity | 5 to 95% |
| Storage Altitude | 0 to 15,240 m |
| Product Certifications | cUL Listed PSE UL Listed VCCI Class A VDE |
| Standards | EN 55022 Class A EN 55024 EN 61000-3-2 EN 61000-3-3 FCC Part 15 Class A ICES-003 |
| Package 1 Dimensions (H x W x L) | 112.5 cm x 16.5 cm x 11.4 cm |
| Package 1 Weight | 5.488 kg |
| Warranty | 2 years repair or replace |
