Manufacture: APC | Model: EPDU1016B

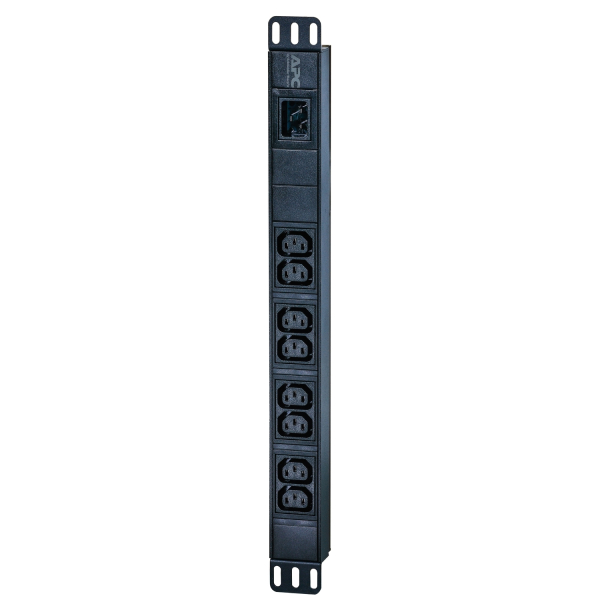

APC Easy Basic Rack PDU EPDU1016B is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is horizontal rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. EPDU1016B has an IEC-320 C20 200-240V type inlet and eight IEC C13 type outlet sockets. It can operate from -5° to +45°C temperature range and comes with 1 year of standard warranty. The package includes cable, installation guide, user manual and rack mounting brackets for quick and easy mounting inside the rack. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip. Saves time and money during installation by using one branch whip and standard connections. Son degré de protection IP66 le rend idéal pour une utilisation intensive dans des conditions difficiles.
| Lead Time | Usually in Stock |
| Colour | Black |
| Product Type | PDU (Power Distribution Unit) |
| PDU Type | Basic |
| Cord Length | 2.5 m |
| Provided Equipment | Installation Guide, Rack Mounting Brackets, User Manual, Cable |
| Input Voltage | 200 V, 208 V, 230 V |
| Output Voltage | 208 V, 230 V |
| Height | 4.44 cm |
| Width | 48.2 cm |
| Depth | 4.44 cm |
| Product Weight | 0.58 kg |
| Mounting Location | Front, Rear |
| Mounting Preference | No Preference |
| Input Plug Type | IEC 60320 C20 |
| Mounting Mode | Rack-Mounted |
| Rack Units | 1U |
| Mounting Position | Horizontal |
| Input Current Limits | 16 A |
| Load Capacity | 3680 VA |
| Network Frequency | 50/60 Hz |
| Outlet Type & Quantity | 8 x IEC 60320 C13 |
| Product Certifications | CE, TÜV |
| Operating Temperature | -5…45 °C |
| Relative Humidity | 5…95 % |
| Operating Altitude | 0...10,000 ft |
| Storage Temperature | -25…65 °C |
| Storage Relative Humidity | 5…95 % |
| Storage Altitude | 0…15,240 m |
| Package Type | PCE |
| Number of Units per Package | 1 |
| Package Height | 15 cm |
| Package Width | 8 cm |
| Package Length | 56 cm |
| Package Weight | 1.18 kg |
| Warranty | 1 Year Repair or Replace |
