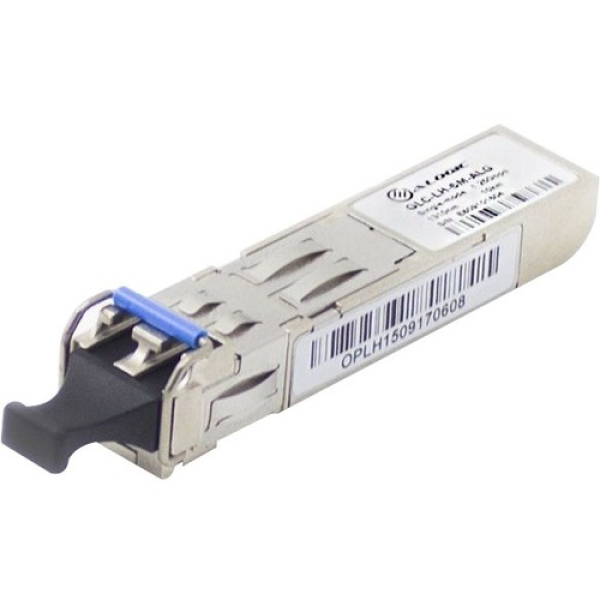

Alogic Cisco GLCLHSM Compatible 1000BaseLX SMF SFP Transceiver Module - 10Km

Sku: GLC-LH-SM-ALG

Availability: Out of Stock

Brand: ALOGIC

Category: Network Accessories

$86.90 $77.00 -13% OFF

Output: Duplex LC connector, SFP transceiver type: Fiber optic, Maximum data transfer rate: 1000 Mbit/s, Interface type: mini-GBIC, Maximum transfer distance: 10000 m, Wavelength: 1310 nm, Lifetime Limited Warranty, GLC-LH-SM-ALG.

100% Guarantee Safe Checkout

Description

Manufacture # Alogic | Model # GLC-LH-SM-ALG

This SFP (mini-GBIC) transceiver module is designed for use with Cisco network equipment and is equivalent to Cisco part number GLC-LH-SM. This transceiver is built to meet or exceed the specifications of the OEM and to comply with Multi-Source Agreement (MSA) standards. This product is 100% functionally tested, and compatibility is guaranteed. The transceiver is a hot-swappable input/output device which allows a Gigabit Ethernet port to link with a fiber optic network. OEM specific configuration data is loaded on to the EEPROM of the transceiver at the factory, allowing this transceiver to initialize and perform identically to an OEM transceiver. This transceiver may be mixed and deployed with other OEM or third party transceivers and will deliver seamless network performance.

Features:

Hot Pluggable
Low power consumption
Compliant with MSA Specifications
All-metal housing for superior EMI performance
Cost effective solution, enables higher port densities and greater bandwidth

Overview:

Output: Duplex LC connector
SFP transceiver type: Fiber optic
Maximum data transfer rate: 1000 Mbit/s
Interface type: mini-GBIC
Maximum transfer distance: 10000 m
Wavelength: 1310 nm

Manufacturer Warranty: Lifetime Limited Warranty

Physical Characteristics	Industry standard small form pluggable (SFP) package
Signal Indicators	TTL signal detect indicator
Emitter Coupled Logic	Differential LVPECL inputs and outputs
RoHS	RoHS Compliant
Power Supply	Single power supply 3.3V
Compliance	SFP Multi-Source Agreement compliance \| Compliant with Fiber Channel 100-SM-LC-L standard \| Compliant with IEEE802.3z Gigabit Ethernet standard \| Class 1 laser product complies with EN 60825*1
Output	Duplex LC connector
SFP transceiver type	Fiber optic
Maximum data transfer rate	1000 Mbit/s
Interface type	mini-GBIC
Single-mode fiber (SMF) supported	Yes
Multi-mode fiber (MMF) supported	No
Fiber optic connector	LC
Maximum transfer distance	10000 m
Wavelength	1310 nm
Duplex system	Full
Compatibility	ASR 1000 Series Aggregation Services Router - ASR1001 RP Memory ASR 1000 Series Aggregation Services Router - ASR1002-X RP Memory Catalyst 3850 Series - 3850-24F-E Catalyst 3850 Series - 3850-48P-E Catalyst 3850 Series - 3850-24P-E Catalyst 3850 Series - 3850-48T-E Catalyst 3850 Series - 3850-24T-E Catalyst 3850 Series - 3850-48F-S Catalyst 3850 Series - 3850-48P-S Catalyst 3850 Series - 3850-24P-S Catalyst 3850 Series - 3850-48T-S Catalyst 3850 Series - 3850-24T-S Catalyst 3850 Series - 3850-48F-L Catalyst 3850 Series - 3850-48P-L Catalyst 3850 Series - 3850-24P-L Catalyst 3850 Series - 3850-48T-L Catalyst 3850 Series - 3850-24T-L Wide Area Virtualization Engine - WAVE-694 Wide Area Virtualization Engine - WAVE-594 ASA 5500 Adaptive Security Appliance - ASA5540 ASA 5500 Adaptive Security Appliance - ASA5520 ASA 5500 Adaptive Security Appliance - ASA5510 ASA 5500 Adaptive Security Appliance - ASA5505 3900 Series Integrated Services Router - Cisco 3925E 3900 Series Integrated Services Router - Cisco 3945E UCS 6200 Series Fabric Interconnects - UCS 6296UP UCS 6200 Series Fabric Interconnects - UCS 6248UP ASR 901 Series Router - A901-12-C-FT-D ASR 901 Series Router - A901-12C-F-D 3900 Series Integrated Services Router - EHWIC-GE-SFP-CU 2900 Series Integrated Services Router - EHWIC-GE-SFP-CU 1900 Series Integrated Services Router - EHWIC-1GE-SFP-CU Nexus 7000 Series - N7K-F248XP-25 UCS Series - UCS-IOM-2208XP UCS Series - UCS-FI-E16UP UCS Series - UCS-FI-6248UP Nexus 5000 Series - N5K-C5548P-FA Nexus 3000 Series - N3K-C3048TP-1GE Nexus 3000 Series - N3K-C3064PQ-10GE Nexus 3000 Series - N3K-C3064PQ Catalyst 4500 Series Switch - WS-X45-SUP7L-E Catalyst 3560-C Series - WS-C3560C-12PC-S Catalyst 3560-C Series - WS-C3560C-8PC-S Catalyst 2960-C Series - WS-C2960C-8TC-L Catalyst 2960-C Series - WS-C2960C-12PC-L Catalyst 2960-C Series - WS-C2960C-8PC-L Catalyst 2960-C Series - WS-C2960C-8TC-S Catalyst 6500 Series - WS-X6848-SFP-2TXL Catalyst 6500 Series - WS-X6848-SFP-2T Catalyst 6500 Series - WS-X6824-2TXL Catalyst 6500 Series - WS-X6824-SFP-2T Catalyst 6500 Series - VS-S2T-10G-XL Catalyst 6500 Series - VS-S2T-10G Catalyst 4500 Series - WS-X4640-CSFP-E IE3010 Series Switch - IE-3010-24TC Catalyst 2960-C Series - WS-C2960CG-8TC-L Catalyst 3560-C Series - WS-C3560CG-8PC-S Catalyst 3560-C Series - WS-C3560CG-8TC-S Catalyst 3750-X Series - WS-C3750X-24S Catalyst 3750-X Series - WS-C3750X-12S IE3010 Series Switch - IE-3010-16S-8PC 892F Series Wireless Integrated Services Router - CISCO892FW-K9 892F Series Wireless Integrated Services Router - CISCO892F-K9 CRS-1 Router Series - CRS-FCC-SC-22GE 2900 Series Integrated Services Router - SM-D-ES3-48 Catalyst 3100 Series Blade Switch - WS-CBS3110X-S Catalyst 2960 Series - WS-C2960-24LT-S Catalyst 2960 Series - WS-C2960-24PC-S Catalyst 2960 Series - WS-C2960-48PST-S ME 3800X - ME-3800X-24FS-M (SFP+ ports) Catalyst 3750 Series - WS-C3750V2-48TS Catalyst 3750 Series - WS-C3750V2-48PS Catalyst 3750 Series - WS-C3750V2-24TS Catalyst 3750 Series - WS-C3750V2-24PS NAM2200 Series Appliance NAM2204-SFP 3900 Series Integrated Services Router - SM-D-ES2-48 3900 Series Integrated Services Router - SM-D-ES3-48-P 3900 Series Integrated Services Router - SM-D-ES3G-48-P 3900 Series Integrated Services Router - HWIC-1GE-SFP 3900 Series Integrated Services Router - Cisco 3945 3900 Series Integrated Services Router - Cisco 3925 2900 Series Integrated Services Router - SM-D-ES2-48 2900 Series Integrated Services Router - SM-D-ES3-48-P 2900 Series Integrated Services Router - SM-D-ES3G-48-P 2900 Series Integrated Services Router - HWIC-1GE-SFP 2900 Series Integrated Services Router - Cisco 2951 2900 Series Integrated Services Router - Cisco 2921 1900 Series Integrated Services Router - HWIC-1GE-SFP Nexus 7000 Series - N7K-F132XP-15 Nexus 7000 Series - N7K-M148GS-11L Unified Computing System - N20-I6584 Unified Computing System - N10-E0600 Unified Computing System - N10-E0440 Unified Computing System - N10-S6200 Unified Computing System - N10-S6100 Nexus 4000 Series Switch - N4K-4001I-XPX Nexus 2000 Series Switch - N2K-C2232PP-10GE Catalyst 2360 Series - 2360-48TD-S Catalyst 4900 Series Switch - WS-C4948E Catalyst 4500 Series Switch - WS-X45-SUP7-E Catalyst 4500 Series Switch - WS-X4712-SFP+E Catalyst 4500 Series Switch - WS-X4612-SFP-E 2000 Connected Grid Router Series - CGR 2010 2500 Connected Grid Switch Series - CGS-2520-16S-8PC 2500 Connected Grid Switch Series - CGS-2520-24TC Catalyst 3750-X Series - WS-C3750X-48PF Catalyst 3750-X Series - WS-C3750X-48P Catalyst 3750-X Series - WS-C3750X-24P Catalyst 3750-X Series - WS-C3750X-48T Catalyst 3750-X Series - WS-C3750X-24T Catalyst 3560-X Series - WS-C3560X-48P Catalyst 3560-X Series - WS-C3560X-24P Catalyst 3560-X Series - WS-C3560X-48T Catalyst 3560-X Series - WS-C3560X-24T Catalyst 3560 Series - WS-C3560V2-48TS Catalyst 3560 Series - WS-C3560V2-48PS Catalyst 3560 Series - WS-C3560V2-24TS Catalyst 3560 Series - WS-C3560V2-24PS Catalyst 2960-S Series - WS-C2960S-24TD-L Catalyst 2960-S Series - WS-C2960S-48TD-L Catalyst 2960-S Series - WS-C2960S-24PD-L Catalyst 2960-S Series - WS-C2960S-48LPD-L Catalyst 2960-S Series - WS-C2960S-48FPD-L Catalyst 2960-S Series - WS-C2960S-24TS-L Catalyst 2960-S Series - WS-C2960S-48TS-L Catalyst 2960-S Series - WS-C2960S-24PS-L Catalyst 2960-S Series - WS-C2960S-48LPS-L Catalyst 2960-S Series - WS-C2960S-48FPS-L Catalyst 2960-S Series - WS-C2960S-48TS-S Catalyst 2960-S Series - WS-C2960S-24TS-S ME 3800X - ME-3800X-24FS-M (client ports) ME 3600X - ME-3600X-24TS-M (SFP+ Ports) ME 3600X - ME-3600X-24FS-M ME 3600X - ME-3600X-24FS-M (client ports) ME 3400 - ME-3400EG-12CS-M Nexus 5500 Series Switches Catalyst 4500 Series Switch - WS-X45-SUP6L-E 5500 Series Wireless Controller ME 4900 Series Ethernet Switch - ME-4924-10GE Catalyst 3750 Metro Series - ME-C3750-24TE-M ME 3400 - ME-3400-24FS-A ME 3400 - ME-3400G-12CS-D ME 3400 - ME-3400G-12CS-A Catalyst Express 520 - WS-CE520G-24TC-K9 Catalyst Express 520 - WS-CE520-24PC-K9 Catalyst Express 520 - WS-CE520-24LC-K9 Catalyst Express 520 - WS-CE520-8PC-K9 Catalyst Express 500 - WS-CE500-12TC Catalyst Express 500 - WS-CE500-24PC Catalyst Express 500 - WS-CE500-24LC ME 2400 - ME-2400-24TS-D ME 2400 - ME-2400-24TS-A ME 3400 - ME-3400EG-2CS-A ME 3400 - ME-3400E-24TS-M ME 3400 - ME-3400G-2CS-A ME 3400 - ME-3400-24CS-A ME 3400 - ME-3400-24TS-D ME 3400 - ME-3400-24TS-A ME 6500 Series - ME-C6524GT-8S ME 6500 Series - ME-C6524GS-8S Catalyst 6500 Series - WS-SUP32-10GE-PISA Catalyst 4900 Series Switch - WS-C4928-10GE Catalyst 3560-E Series - WS-C3560E-12SD ASA 5500 Adaptive Security Appliance - SSM-4GE MWR 2900 Mobile Wireless Router - MWR-2941-DC CRS-1 Router Series - CRS-16-RP-B CRS-1 Router Series - CRS-16-RP CRS-1 Router Series - CRS-8-RP 12000 Series Router - EPA-3GE-SX/LH-LC 12000 Series Router - 4GE-SFP-LC 12000 Series Router - 10x1GE-SFP-LC-B 7600 Series Router - RSP720-10GE 7600 Series Router - RSP720-3CXL-GE 7600 Series Router - RSP720-3C-GE 7600 Series Router - WS-X6748-SFP 7600 Series Router - WS-X6724-SFP 7600 Series Router - WS-SUP32-GE-3B 7300 Series Router - 7300-NSE-150 7300 Series Router - 7304-NPE-G100 7300 Series Router - Cisco7301 3800 Series Integrated Services Router - Cisco 3845 3800 Series Integrated Services Router - Cisco 3825 3800 Series Integrated Services Router - HWIC-1GE-SFP 3800 Series Integrated Services Router - NME-XD-48ES-2S-P 3800 Series Integrated Services Router - NME-XD-24ES-1S-P 3700 Series Router - NME-XD-48ES-2S-P 3700 Series Router - NME-XD-24ES-1S-P 3200 Series Rugged Routers - Cisco 3270 2800 Series Router - HWIC-1GE-SFP 2800 Series Router - NME-XD-48ES-2S-P 2800 Series Router - NME-XD-24ES-1S-P 2600 Series Router - NME-XD-48ES-2S-P 2600 Series Router - NME-XD-24ES-1S-P CSS 11500 Series - CSS5-IOM-2GE CSS 11500 Series - CSS5-SCM-2GE CSS 11500 Series - CSS11501 CSS 11500 Series - CSS11503-DC CSS 11500 Series - CSS11503-AC CSS 11500 Series - CSS11506-2DC CSS 11500 Series - CSS11506-2AC Nexus 7000 Series - N7K-M148GS-11 Nexus 5000 Series Switch - N5K-C5020P-BF Nexus 5000 Series Switch - N5K-C5010P-BF Catalyst 3100 Series Blade Switch - WS-CBS-3130G-S Catalyst 3100 Series Blade Switch - WS-CBS-3120G-S Catalyst 3000 Series Blade Switch - WS-CBS3032-DEL Catalyst 3000 Series Blade Switch - WS-CBS3030-DEL Catalyst 3000 Series Blade Switch - WS-CBS3020-HPQ Catalyst 6500 Series - WS-X6748-SFP Catalyst 6500 Series - WS-X6724-SFP Catalyst 6500 Series - VS-S720-10G-3CXL Catalyst 6500 Series - VS-S720-10G-3C Catalyst 6500 Series - WS-SUP32-GE-PISA Catalyst 6500 Series - WS-SUP32-10GE-3B Catalyst 6500 Series - WS-SUP32-GE-3B Catalyst 6500 Series - WS-SUP720-3BXL Catalyst 6500 Series - WS-SUP720-3B Catalyst 6500 Series - WS-SUP720 Catalyst 4900 Series Switch - WS-X4908 Catalyst 4900 Series Switch - WS-X4904 Catalyst 4900 Series Switch - WS-4928-10GE Catalyst 4900 Series Switch - WS-C4948 Catalyst 4500 Series Switch - WS-4624-SFP-E Catalyst 4500 Series Switch - WS-X4606-X2 Catalyst 4500 Series Switch - WS-X45-SUP6-E Catalyst 4500 Series Switch - WS-X4516-10GE Catalyst 4500 Series Switch - WS-X4506-GB-T Catalyst 4500 Series Switch - WS-4448-GB-SFP Catalyst 4500 Series Switch - WS-X4013+10GE Catalyst 4500 Series Switch - WS-X4013+TS Catalyst 3750-E Series - WS-C3750E-48PDF Catalyst 3750-E Series - WS-C3750E-48PD Catalyst 3750-E Series - WS-C3750E-48TD Catalyst 3750-E Series - WS-C3750E-24PD Catalyst 3750-E Series - WS-C3750E-24TD Catalyst 3750 Series - WS-C3750-24WFS Catalyst 3750 Series - WS-C3750-24FS-S Catalyst 3750 Series - WS-C3750-48PS Catalyst 3750 Series - WS-C3750-24PS Catalyst 3750 Series - WS-C3750G-48PS Catalyst 3750 Series - WS-C3750G-24PS Catalyst 3750 Series - WS-C3750G-48TS Catalyst 3750 Series - WS-C3750G-24TS Catalyst 3750 Series - WS-C3750G-12S Catalyst 3750 Series - WS-C3750-48TS Catalyst 3750 Series - WS-C3750-24TS Catalyst 3560-E Series - WS-C3560E-12D Catalyst 3560-E Series - WS-C3560E-48PDF Catalyst 3560-E Series - WS-C3560E-48PD Catalyst 3560-E Series - WS-C3560E-48TD Catalyst 3560-E Series - WS-C3560E-24PD Catalyst 3560-E Series - WS-C3560E-24TD Catalyst 3560 Series - WS-C3560-12PC-S Catalyst 3560 Series - WS-C3560-8PC-S Catalyst 3560 Series - WS-C3560G-48TS Catalyst 3560 Series - WS-C3560G-24TS Catalyst 3560 Series - WS-C3560G-48PS Catalyst 3560 Series - WS-C3560G-24PS Catalyst 3560 Series - WS-C3560-48TS Catalyst 3560 Series - WS-C3560-24TS Catalyst 3560 Series - WS-C3560-48PS Catalyst 3560 Series - WS-C3560-24PS Catalyst 2975 Series - WS-C2975GS-48PS-L Catalyst 2970 Series - WS-C2970G-24TS-E Catalyst 2960 Series - WS-C2960G-48TC-L Catalyst 2960 Series - WS-C2960G-8TC-L Catalyst 2960 Series - WS-C2960-8TC-L Catalyst 2960 Series - WS-C2960-48PST-L Catalyst 2960 Series - WS-C2960-8TC-S Catalyst 2960 Series - WS-C2960-48TC-S Catalyst 2960 Series - WS-C2960-24TC-S Catalyst 2960 Series - WS-C2960-24PC-L Catalyst 2960 Series - WS-C2960-48TC-L Catalyst 2960 Series - WS-C2960G-24TC-L Catalyst 2960 Series - WS-C2960-24TC-L Catalyst 2950 Series - WS-C2950ST-24 LRE997 Catalyst 2950 Series - WS-C2950ST-24 LRE Catalyst 2950 Series - WS-C2950ST-8 LRE Catalyst 2940 Series - WS-C2940-8TF-S Catalyst 2900 Series Switch - WS-C2948G-GE-TX Nexus 7000 Series - N7K-F248XP-32E ME 3600X - ME-3600X-24CX-M 5700 WLC Series - AIR-CT5760-HA-K9 5700 WLC Series - AIR-CT5760-1K-K9 5700 WLC Series - AIR-CT5760-500-K9 5700 WLC Series - AIR-CT5760-250-K9 5700 WLC Series - AIR-CT5760-100-K9 5700 WLC Series - AIR-CT5760-50-K9 5700 WLC Series - AIR-CT5760-25-K9 ASR 1000 Series Router - ASR 1002-F ASR 1000 Series Router - ASR 1002 ASR 1000 Series Router - ASR 1001 ASR 901 Series Router - A901-6-CZ-FT-A ASR 901 Series Router - A901-6CZ-F-A ASR 901 Series Router - A901-6-CZ-F-D ASR 901 Series Router - A901-4-C-FT-D ASR 901 Series Router - A901-4C-F-D CRS Router Series - CRS-8-PRP-6G 4400 Series Router - 4451-X 1941 Series Router HWC-1GE-SFP 1921 Series Router EHWC-1GE-SFP-CU Catalyst 4500 Series WS-X4448-GB-SFP UCS 6140XP 40-Port UCS 6120XP 20-Port Catalyst 6500 VS-720-10G-3CXL Catalyst 6500 VS-720-10G-3C Catalyst 4500-X Series WS-C4500-X-F-16SFP+ Catalyst 4500X Series WS-C4500-X-24X-ES Catalyst 4500X Series WS-C4500X-16SFP+ Catalyst 4500X Series WS-C4500-X-32SFP+ Catalyst 4500 Series WS-X45-SUP8-E Catalyst C2960-XR Series WS-C2960XR-48FPD-I Catalyst C2960-XR Series WS-C2960XR-48LPD-I Catalyst C2960-XR Series WS-C2960XR-24PD-I Catalyst C2960-XR Series WS-C2960XR-48TD-I Catalyst C2960-XR Series WS-C2960XR-24TD-I Catalyst C2960-XR Series WS-C2960XR-48LPS-I Catalyst C2960-XR Series WS-C2960XR-24PS-I Catalyst C2960-XR Series WS-C2960XR-48TS-I Catalyst C2960-XR Series WS-C2960XR-24TS-I Catalyst C2960-X Series WS-C2960-X-48TD-L Catalyst C2960-X Series WS-C2960X-48TS-L Nexus 7000 Series - N7K-F248XP-25E Catalyst 4900 Series Switch - WS-C4900M 300 Series Switch - SF300-24 300 Series Switch - SF300-48 300 Series Switch - SF302-08 300 Series Switch - SG300 Catalyst 2960-X Series - WS-C2960X-18TS-LL Catalyst 2960-X Series - WS-C2960X-24TS-LL IE2000 Series - IE-2000-16TC-B IE2000 Series - IE-2000-16TC-G-E IE2000 Series - IE-2000-16TC-G-L IE2000 Series - IE-2000-16TC-G-N IE2000 Series - IE-2000-16TC-G-X IE2000 Series - IE-2000-16TC-L IE2000 Series - IE-2000-4TS-B IE2000 Series - IE-2000-4TS-L IE2000 Series - IE-2000-8TC-B IE2000 Series - IE-2000-8TC-L Nexus 3524 Switch Nexus 3548 Switch Catalyst 2960+ Series - WS-C2960+48PST-L Catalyst 2960-X Series - WS-C2960X-48FPD-L Catalyst 2960-X Series - WS-C2960X-48FPS-L Catalyst 2960-X Series - WS-C2960X-48LPS-L Catalyst 2960-X Series - WS-C2960X-48TD-L Catalyst 2960+ Series - WS-C2960+24TC-S Catalyst 2960+ Series - WS-C2960+24TC-L Catalyst C2960-XR Series WS-C2960XR-48FPS-I Catalyst 2960-X Series - WS-C2960X-48TS-LL Catalyst 2960-X Series - WS-C2960X-24PS-L Cisco Catalyst 3650-48P Layer 3 Switch - WS-C3650-48PD-S Cisco Catalyst 3650 Series Switch - WS-C3650-48FD-L Cisco Catalyst WS-C3650-24TS Cisco Catalyst 3650 Series... Cisco Catalyst WS-C3650-24PS Cisco Catalyst WS-C3850-12S
