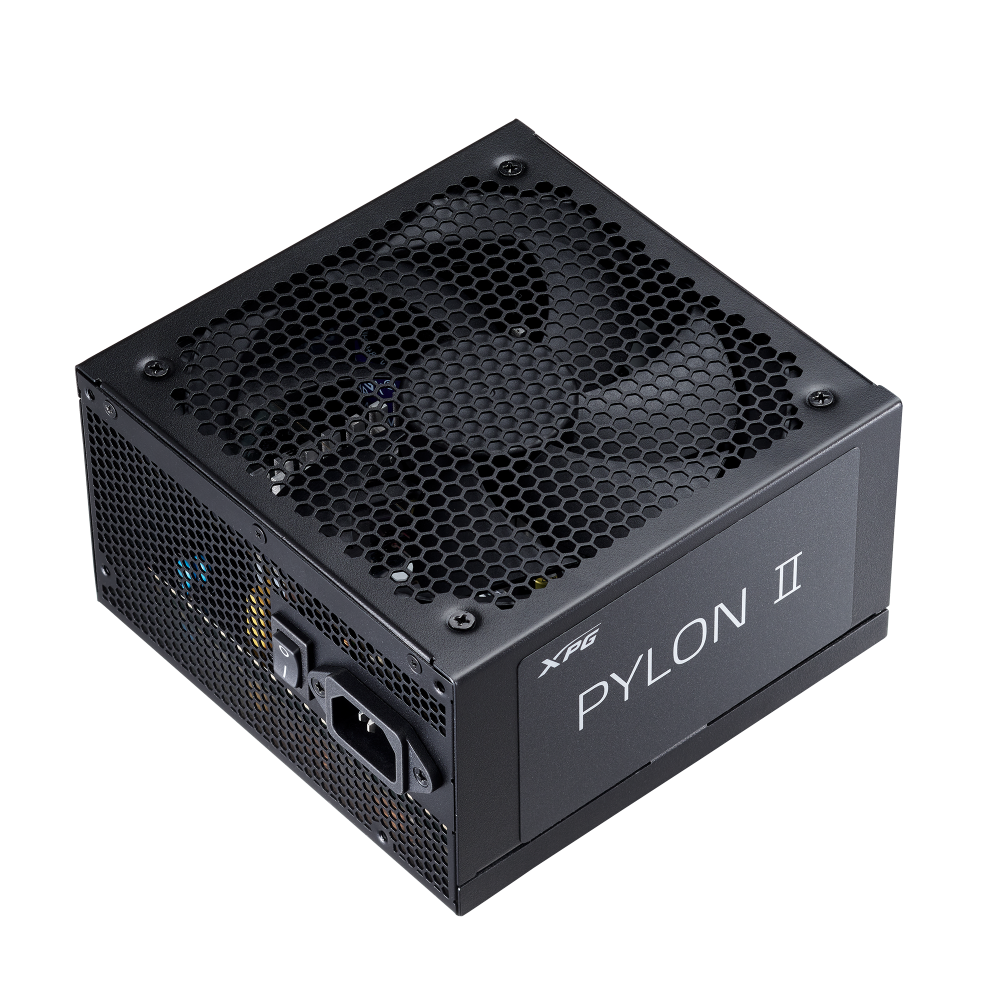

Adata XPG Pylon II 750W 80 Plus Bronze ATX 3.1 Non Modular PSU Black

Sku: PYLONII750B-BKCAU

Brand: ADATA

Category: Power Supplies

$105.60 $97.90 -8% OFF

Shipping Information

Availability: In Stock

Ships in 1-2 days.

Pickup from Seven Hills in 1-2 days.

Shipping Calculator

Product Type: PC Power Supply Unit, Model: XPG PYLON II, Form Factor: ATX, 80 PLUS Rating: Bronze, ATX Version: Intel ATX v3.1, Fan Size: 135mm, Warranty: 5 years

-
+

We Accept

Thumbnail 3

Description

Manufacture # Adata | Model # PYLONII750B-BKCAU



The PYLON II Bronze PSU delivers 80 PLUS Bronze efficiency, cutting energy costs without sacrificing performance. Designed to meet Intel ATX 3.1 standards, it offers a future-ready solution for high-demand components. Equipped with a quiet and durable FDB fan, it ensures efficient cooling for a stable and noise-free experience. Backed by 8 industrial-grade protections and a 5-year warranty, the PYLON II guarantees long-term reliability and peace of mind for your build.



Key Features:

  • Intel ATX 3.1 Compliant: Designed to meet the latest standards, it is equipped with a 12V-2x6 connector for compatibility with high-performance components.
  • 80 PLUS Bronze Certified: Provides optimal energy efficiency at various loads, reducing power waste and lowering electricity costs.
  • Quiet and Efficient Cooling: Features a 135mm Fluid Dynamic Bearing (FDB) fan that ensures quiet operation and long-lasting durability.
  • Comprehensive Industrial Protections: Includes eight industrial-grade protections (OVP, OPP, SCP, OCP, UVP, OTP, NLO, SIP) to safeguard your system from various electrical risks.
  • Main Japanese Capacitor: Utilizes a high-quality 105°C main Japanese capacitor for enhanced durability, stability, and reliability.



Overview:

  • Product Type: PC Power Supply Unit
  • Model: XPG PYLON II
  • Form Factor: ATX
  • 80 PLUS Rating: Bronze
  • ATX Version: Intel ATX v3.1
  • Fan Size: 135mm
  • Warranty: 5 years



Manufacturer Warranty: 05 Years Limited Warranty

Product Family XPG PYLON II BRONZE
80 Plus Rating BRONZE
ATX Version Intel ATX v3.1
Protections OVP / OPP / SCP / OCP / UVP / OTP / NLO / SIP
PFC >0.99
Input Voltage 100-240V
Input Current 750W / 650W: 10A, 550W: 8A
Input Frequency 50-60Hz
DC Output Voltage +5V | +3.3V | +12V | -12V | +5Vsb
Power Excursion 750W: 1762W, 650W: 1527W, 550W: 1292W
Operating Temperature 50°C
Fan Size 135mm
Fan Bearing FDB (Fluid Dynamic Bearing)
Fan Speed 2300±10 RPM
MTBF 100K Hours at 25℃
Dimensions (L x W x H) 150 x 150 x 86mm
Weight 1.8 kg
Warranty 5 Years
ATX 24 Pin Connector 1
EPS 8 Pin Connector 2
Molex 4 Pin Connector 2
12V-2x6 (12+4) Connector 750W / 650W: 1 (450W), 550W: 1 (300W)
SATA Connector 6
